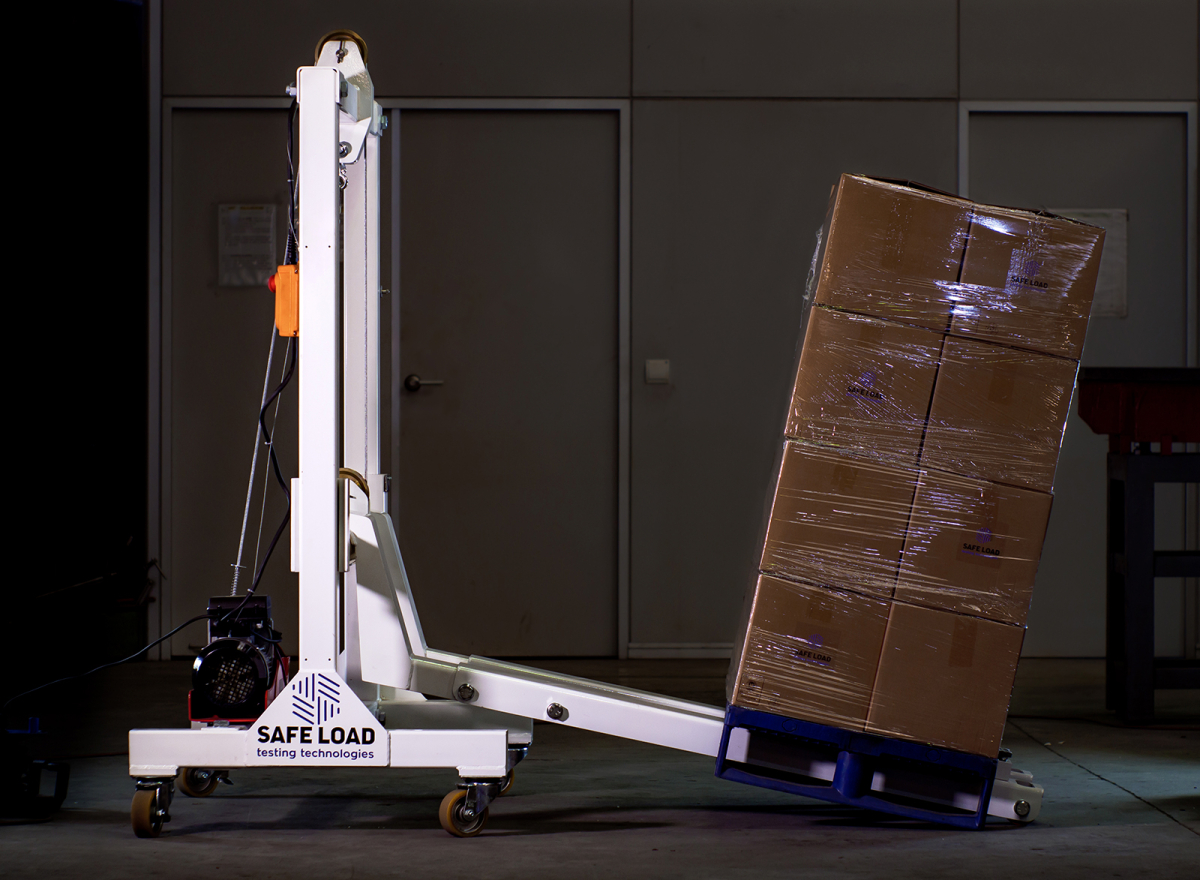

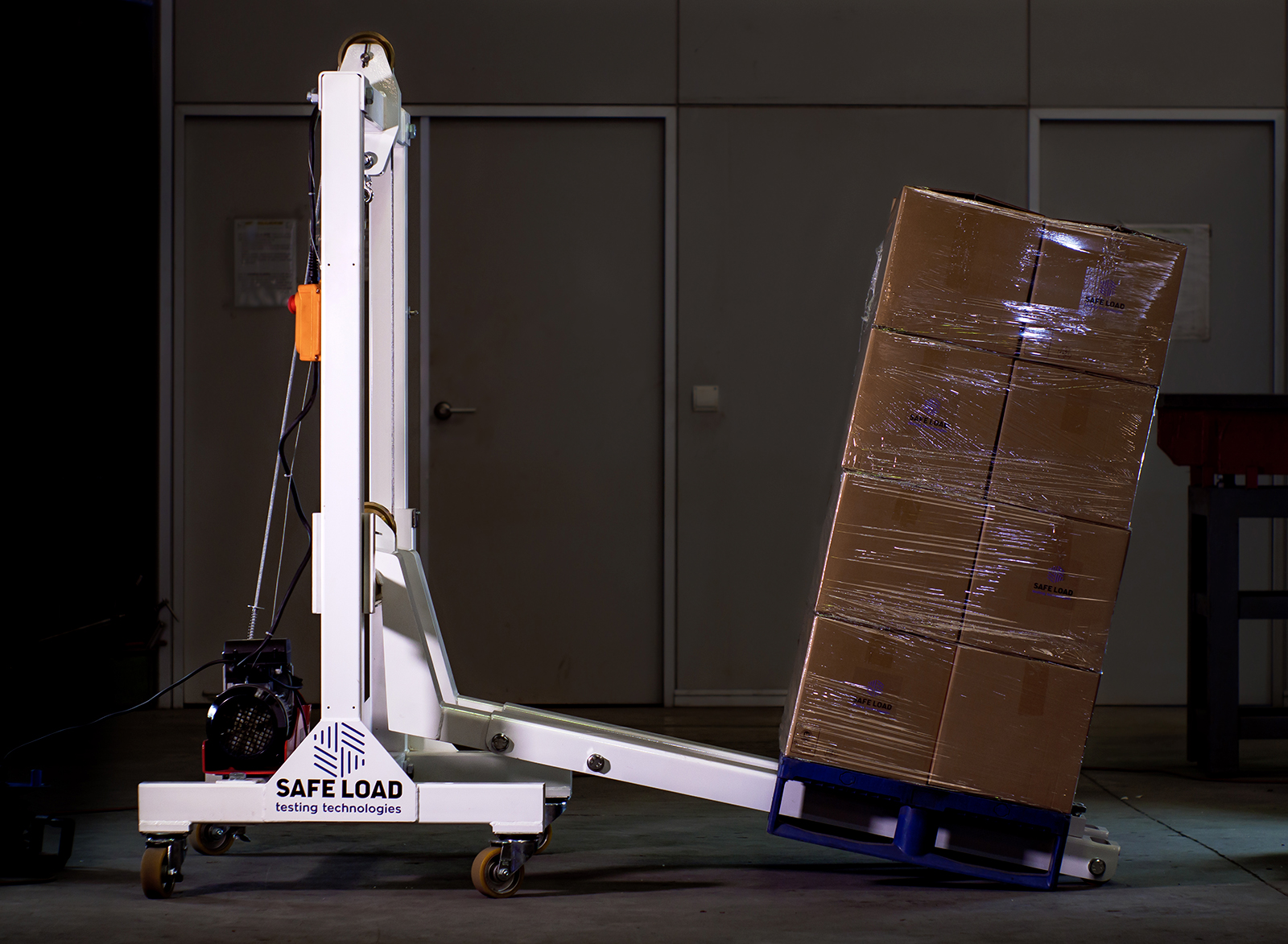

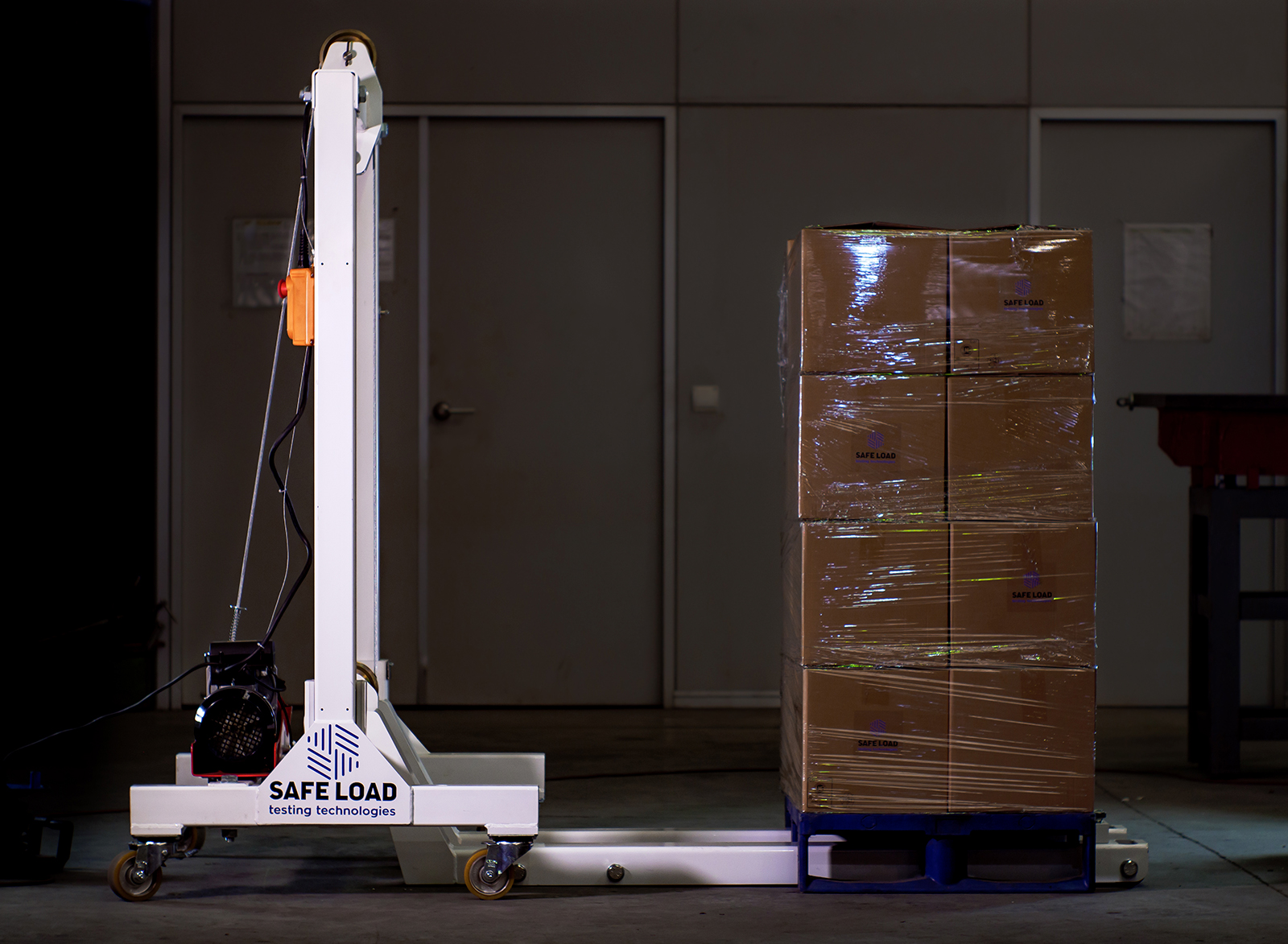

Portable tilt testing tool
The Tilt Testing Tool is specifically designed for tilt testing to evaluate load stability during transportation
Tilt testing tool is a mobile, easy-to-transport device specifically designed for tilt testing to evaluate load stability during transportation.
The innTilt family is a useful tool for packaging optimization and can also be used as a quality control tester, as the repeatability is guaranteed.
Transportable tool weighing less than 300 kg, available in three models for different weight capacities, compliant with EN 12195 standard for load securement, user-friendly design with simple maintenance, suitable for validating and optimizing packaging, and applicable for comparing samples and measuring stability in production without additional elements.
Why choose Safe Load TT tilt testing tool?
Transportable

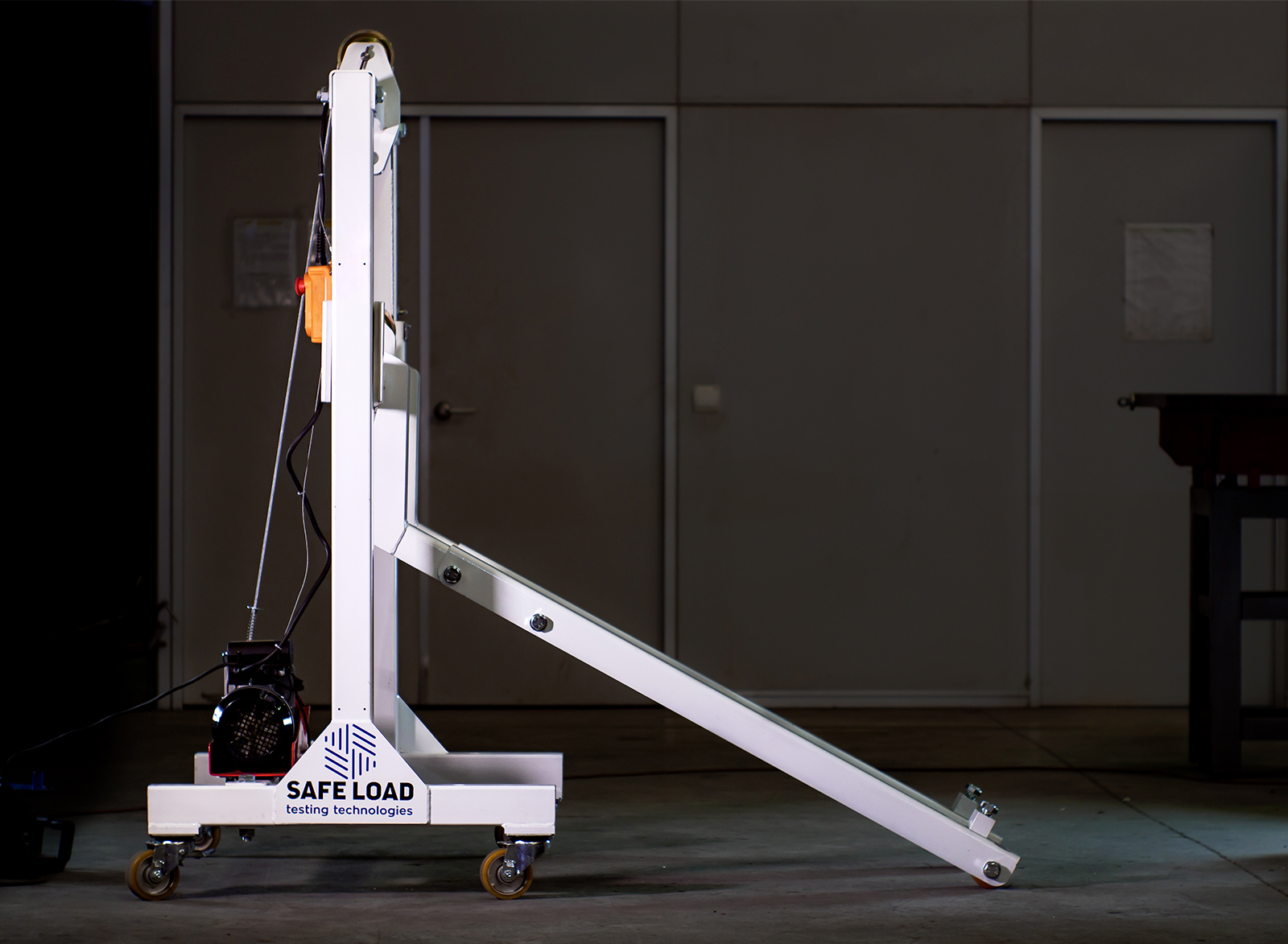

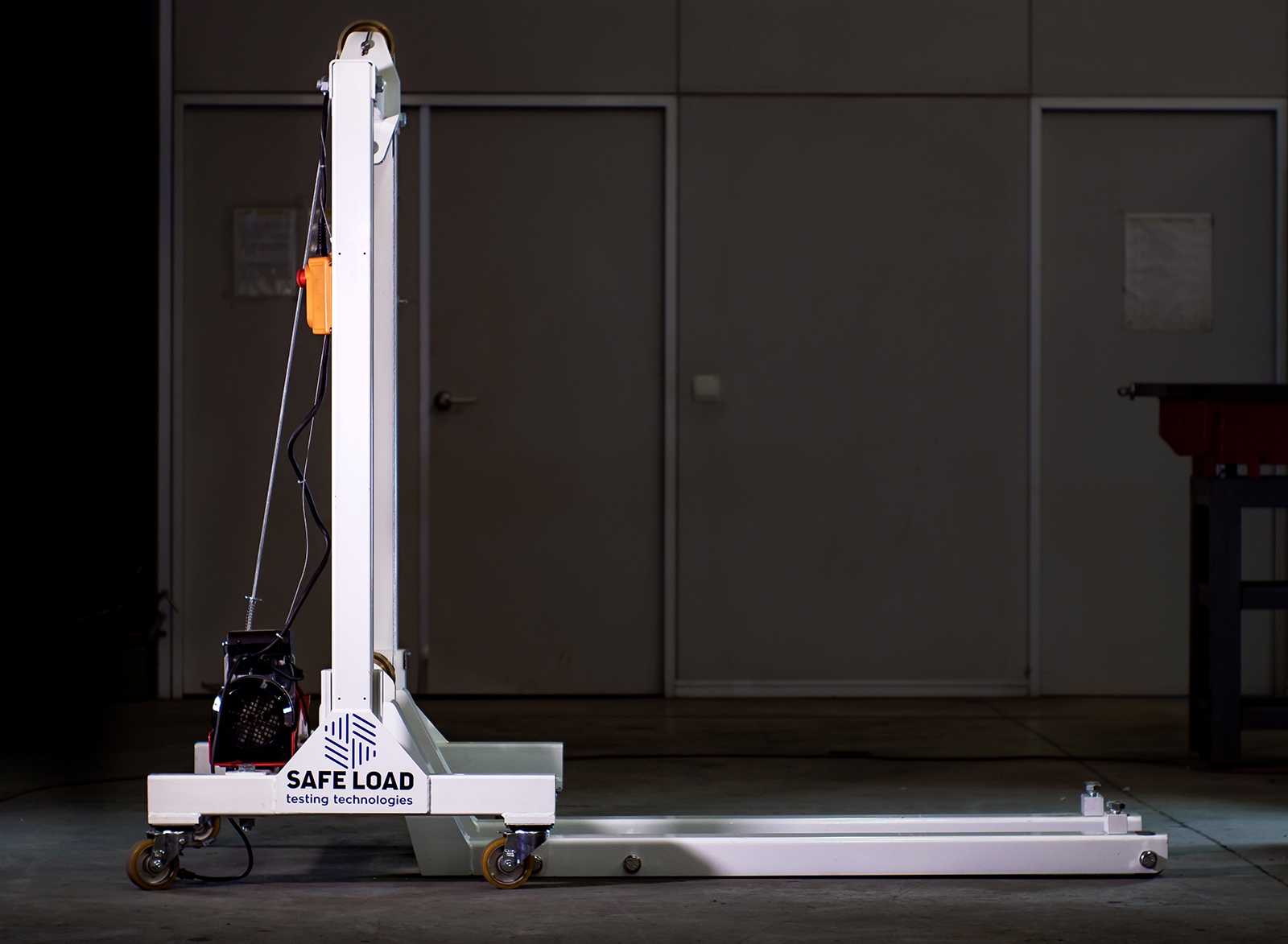

The tool is detachable for easy transportation and handling, weighing less than 300 kg.
The tool is available in 3 transportable models for a maximum inclination angle of 30%:
- SF-TL500: up to 500 Kg
- SF-TL1000: up to 1000 Kg
- SF-TL1500:up to 1500 Kg
Technical Specifications
- Electrical machine
- Detachable for easy transportation and handling, weighing less than 300 kg.
- Load up to 1.500 Kg / 3,306 lb.
- Up to 30⁰ inclination
- Automatic stop at setting angle
- Vertical ruler to set the tilt angle
Compliance with cargo securing regulations
EN 12195 Standard
Designed in line with the EN 12195 standard, used to ensure the load securement on a road transport. More specifically, the test in annex D2 is used to validate the lashing systems for road transportation.
By applying the equations specified in the standard, it is possible to obtain an equivalent acceleration based on the coefficient of sliding friction between the surface and the element being studied.
User-friendly design
The tilt testing tool has user-friendly design: it allows for high operator intuitiveness and simple and inexpensive maintenance.
Validating tool
Suitable method to quickly compare different samples (such as during design) and measure the stability at the end of the production line without adding more elements to it.
Packaging optimization tool
Additionally, this method is highly recommended for quality control systems. It could also be useful for highly rigid products that are transported in a compact manner (as seen in the furniture sector), provided that the packaging has limited slack. In case specific equipment to perform the tilt test is used, repeatability is guaranteed, meaning that it is a very useful tool to study a package’s optimization and achieve load stability.
Suitable method to quickly compare different samples (such as during design) and measure the stability at the end of the production line without adding more elements to it.
Portable Load Securement Solution: Lightweight, Versatile, and Compliant with EN 12195 Standard for Efficient Packaging Optimization and Stability Measurement
