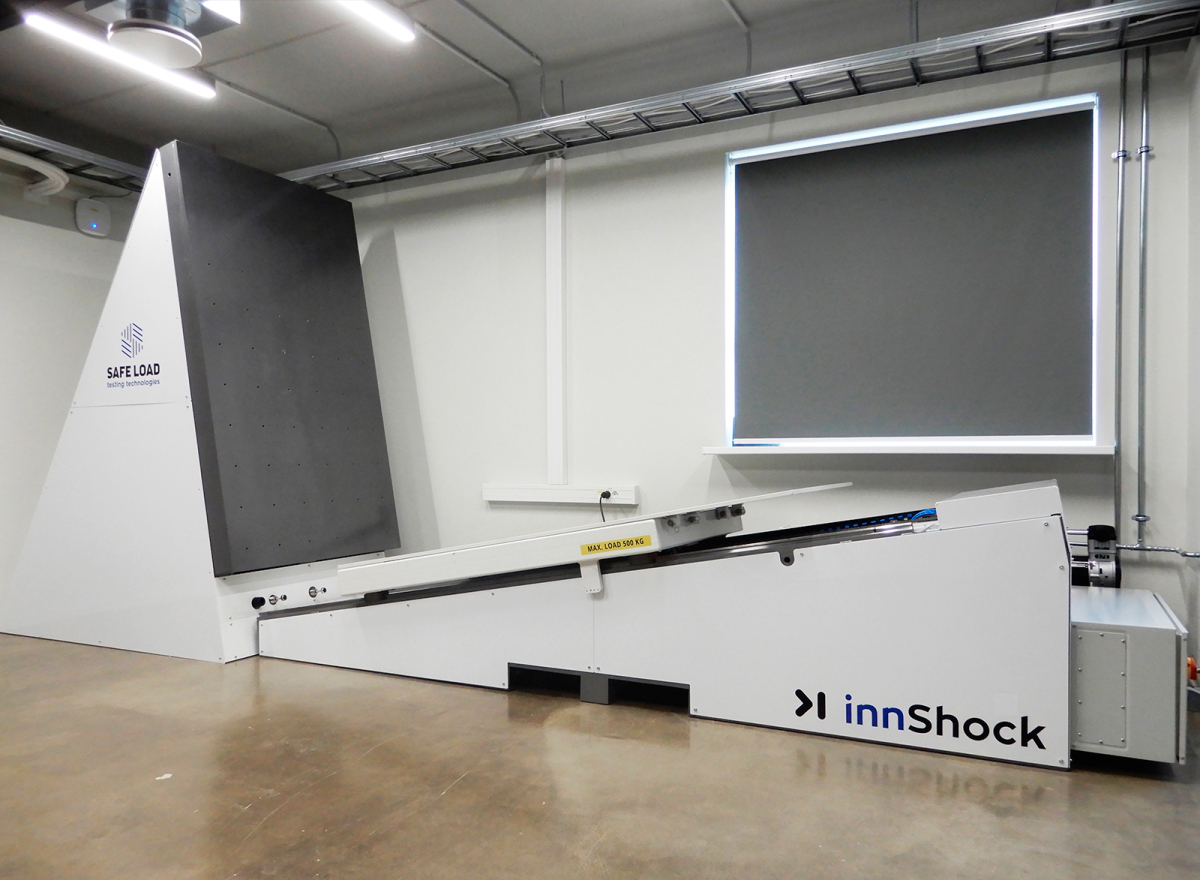

Inclined Impact Tester
The Inclined Impact Tester evaluates the ability of loads to withstand horizontal impacts or crushing forces thanks to the gravity force.
Ensuring Packaging Protection: Inclined Impact Tester for testing shock and impact resistance in distribution cycle
With the Inclined Impact Tester it is possible to test the protective capacity of the packaging when faced with shocks and impacts during the distribution cycle. Impact test is one of the main tests to be carried out in order to achieve optimized packaging and secure goods for transport.
Highly versatile inclined impact tester with specifications including impact velocity of up to 2.5 m/s, testing load capacity of up to 2,000 kg, smooth displacement, hydraulic dumpers, and a 10⁰ inclined plane. User-friendly design with a touchscreen controller and compliance with international protocols. Optional inclusion of innVision ST for unit load deformation measurement and reporting, along with additional options like hazards and speed sensor.
Why choose Safe Load TT inclined impact tester?
Specifications
- Impact velocity up to 2.5 m/s.
- Testing load up to 2.000 kg.
- Test platform different sizes.
- Smooth displacement.
- Hydraulic dumpers
- 10⁰inclined plane
User-friendly design
- The inclined impact tester has user-friendly design: it allows for high operator intuitiveness and simple and inexpensive maintenance.
Touchscreen

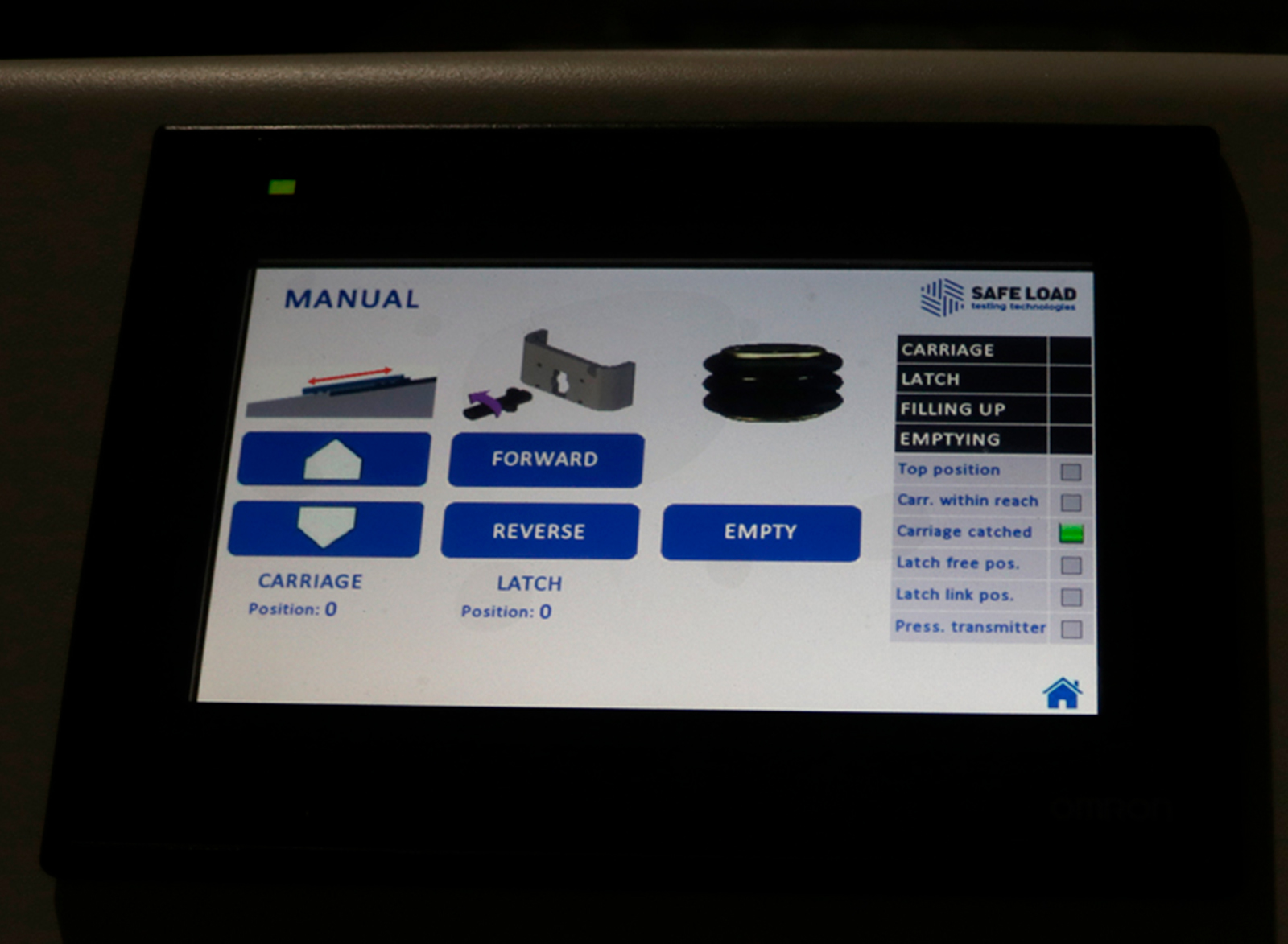

- Touch and intuitive controller to easily command the tests.
Comply with …
- It has been built to carry out the international protocols ASTM D880, ASTM D4003 and ISO 2244.
InnVision ST
- The solution could optionally include the innVision ST: high-speed camera and software to measure the unit load deformation, generating a report.
Optional
- Hazards
- Speed sensor
- innVision ST: a high-speed color camera and software that analyzes the deformation suffered by the load and generates a report with the results after the test.
Introducing a highly versatile inclined impact tester with impressive specifications and user-friendly design, compliance with international protocols, and optional advanced features.
Various organizations play a crucial role in establishing guidelines for side impact testing. Some notable organizations in this regard are the American Society for Testing and Materials (ASTM), the International Safe Transit Association (ISTA), the Military Standard (MIL-STD), and the International Organization for Standardization (ISO). Each of these organizations specifies crucial aspects, such as the required number of impacts, impact velocity, testing sides of the packaged product, and the order in which the impacts should occur. Through their comprehensive guidelines, these organizations ensure that side impact tests meet the necessary industry standards.
