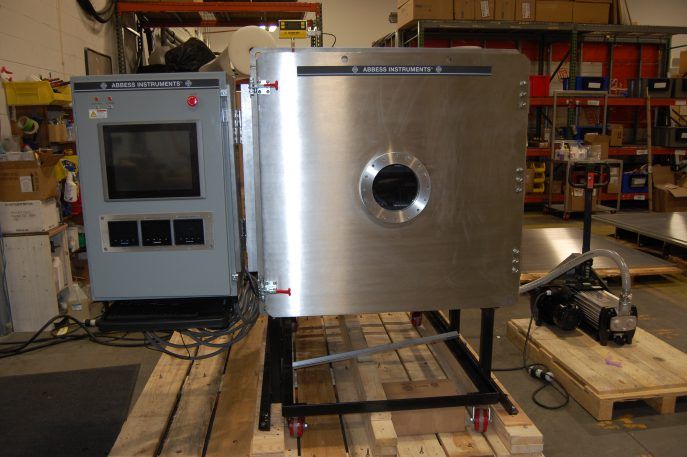

Vacuum Drying (Oven) Systems

Abbess Instruments

The system controls temperature from ambient to 150°C with ±1°C accuracy (up to 250°C optional) and achieves vacuum levels down to 10⁻⁷ torr. It includes spare ports with multiple feedthroughs, calibrated gauges, a roughing pump, and a turbo pump with optional gate valve and bypass setup, plus a door viewport, vent and purge valves. A Vacuum Cycle Controller provides customizable recipes, full integration with valves and gauges, automated vacuum and temperature control, data logging, and remote access.
See all documents

Choose Quantity:

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

Vacuum Drying (Oven) Systems

High-Precision Drying Solutions for Critical Applications

At Abbess, we design and manufacture advanced vacuum drying systems for industries where failure is not an option. Our systems are built to meet stringent performance requirements and conform to key technical standards including ASTM, MIL-STD, SMC (Space and Missile Systems Center), and NASA GSFC protocols.

We serve a broad range of sectors including aerospace, defense, pharmaceuticals, advanced materials, and space systems. Whether you need low-temperature drying, solvent removal, outgassing control, or material conditioning, we deliver systems engineered for mission-critical reliability.

Standards Compliance

Our vacuum drying systems are engineered and validated in alignment with the following standards:

  • ASTM: Including ASTM E171 for moisture conditioning, ASTM E1952 for vacuum drying methodology, and ASTM E595 for outgassing testing.
  • MIL-STD: Systems comply with MIL-STD-810H (environmental engineering considerations) and MIL-STD-202 (testing electronic components).
  • SMC Standards: Designed for aerospace-grade performance including contamination control and vacuum compatibility.
  • NASA GSFC: Engineered to meet GSFC-STD-7000A (contamination control for flight hardware) and GSFC-HDBK-1004 (vacuum bakeout procedures).

Product Line

  • Vacuum Tray Dryers
    • Ideal for batch drying of powders, APIs, and sensitive materials. Designed for cleanroom and GMP applications with temperature uniformity and precise pressure control.
  • Rotary Vacuum Dryers
    • Used for bulk solids, granules, and pastes that require gentle mixing during drying. Optimized for thermal uniformity and solvent recovery.
  • Vacuum Shelf Dryers
    • Modular and lab-ready, ideal for R&D and small-scale production. Available with SCADA control, programmable vacuum cycles, and inert gas options.

Industries Served

  • Aerospace & Satellite Integration
  • Defense & Military Manufacturing
  • Pharmaceutical & Biotech
  • Government Research & National Labs
  • Semiconductor & Battery Technology
  • Advanced Materials & Nanotech

Key Features

Drying Method: Vacuum-assisted thermal drying (conduction / convection optional)

Operating Pressure: 1 Torr to 10⁻⁵ Torr (custom ranges available)

Chamber Material: 304L or 316L stainless steel (other alloys available)

Chamber Volume: 50 – 5,000 liters (customizable)

Temperature Range: Ambient to 150°C (±1°C accuracy); up to 250°C optional

Vacuum Pump Options: Rotary vane, dry scroll, turbomolecular, diffusion

Control System: PLC/HMI with; recipe programming & logging

Heating System: Electrical (shelf/tray), embedded heating elements

Cooling System: Integrated cooling loops or external chiller

Material Compatibility: Solvent-rated seals (PTFE, Viton, Kalrez); inert gas purge ready

Cleanroom Compliance: ISO Class 5–8 compatible designs

Solvent Recovery: Optional cold trap or condenser with drain and recovery tank

Optional Compliance: ASTM E171, E595, MIL-STD-810H, GSFC-STD-7000A, SMC-S-006

Power Requirements: 120–480 V, 1-Phase or 3-phase, 50 or 60 Hz

Instrumentation: Vacuum gauge, temperature sensors (RTD/thermocouple), alarms

Safety Features: Overpressure valve, interlocks, thermal cutoffs, emergency stop
