Tension/Compression Load Cell
Kyowa Americas Inc
It can be installed to where the height is limited. It also suitable for
fatigue test where repeativite loads are applied continuously.
Choose Quantity:
1
The W5 Engineering Advantage
20+ Years in Testing
All Across North America
Trusted by Industry Leaders
24-Hour Engineering Replies
Secure Order Processing
ISO-Level Quality Assurance

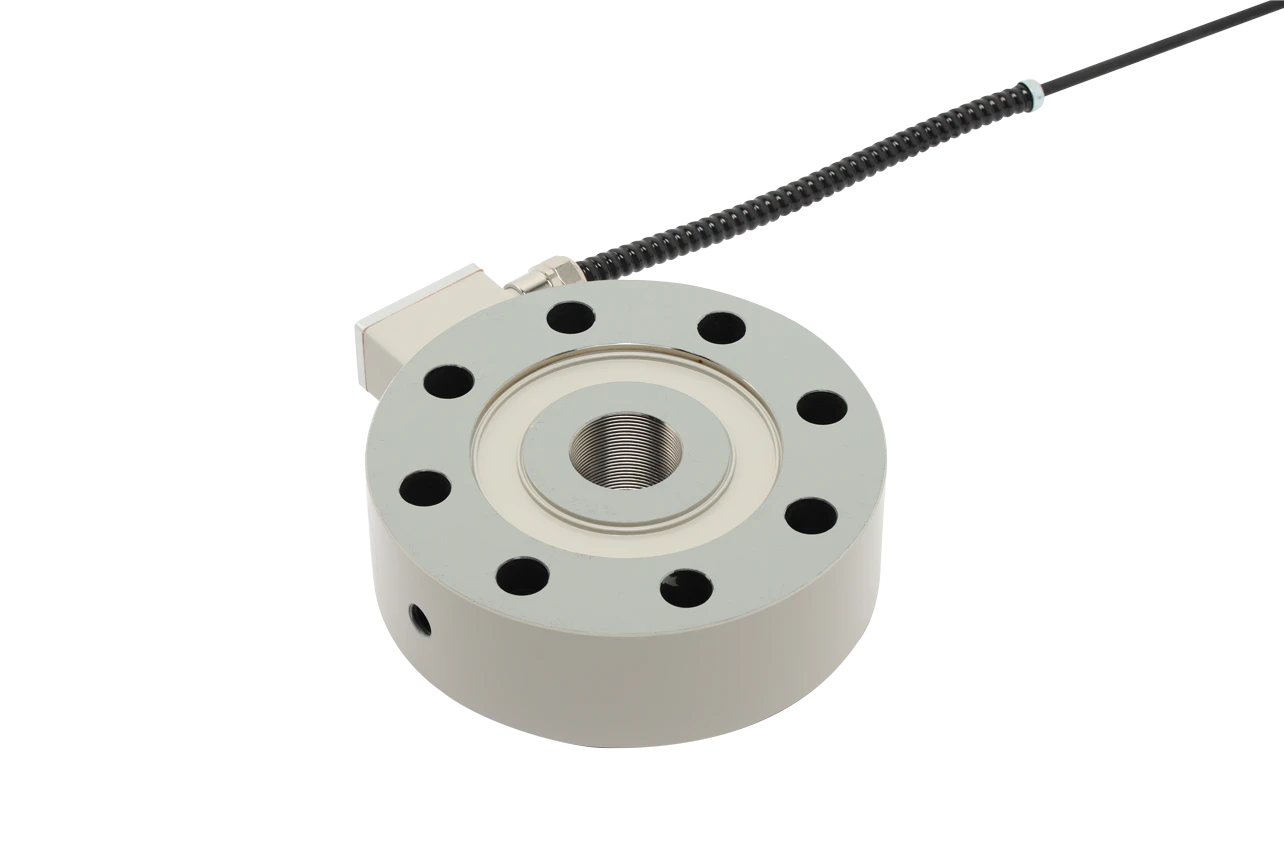

LUK-A is a a thin load cell for measuring tension or compression loads. It can be installed to where the height is limited. It also suitable for fatigue test where repeativite loads are applied continuously. Rated Capacity: ±5 kN to ±2 MN Diameter: 77 mm (±5 kN to ±10 kN), 107 mm (±20 kN), 127 mm (±50 kN), 157 mm (±100 kN), 227 mm (±200 kN), 307 mm (±500 kN), 375 mm (±1 MN), 560 mm (±2 MN) Nonlinearity: Within ±0.1% RO for 5 kN to 200 kN, within ±0.2% RO for 500 kN to 2 MN
Features
Compact & lightweight
The service life can be extended by using under one-half of the rated capacity.
TEDS-installed versions can be manufactured.
