PEL-5000C High Power Compact DC Load

Instek America

Select a Model:

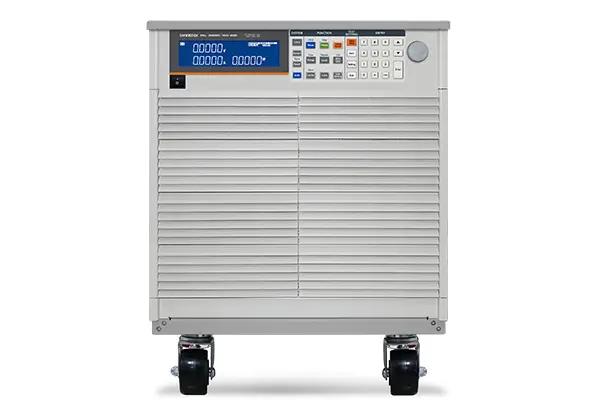

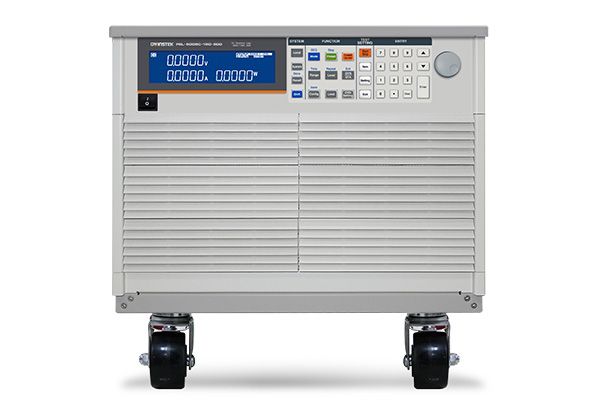

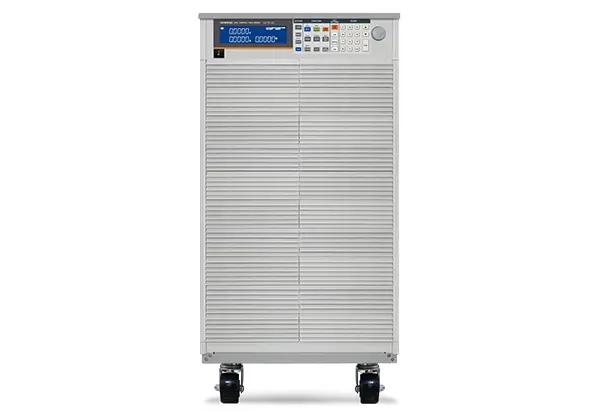

GW Instek PEL-5000C series single-channel electronic load provides 150V/
600V/ 1200V models with a power range of 6kW~24kW. PEL-5000C has a
total of 24 models featuring different combinations of power, voltage,
and current. It can test and verify the specifications of batteries,
electric vehicle chargers/charging stations, electric vehicle batteries
and solar panels. PEL-5000C supports parallel connection for same
voltage specification and different power models. PEL-5000C can support
up to 8 units connected in parallel to provide a maximum power of 192kW.
See all documents

$2,376.00 USD

Choose Quantity:

1

Accessories

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance


GW Instek PEL-5000C series single-channel electronic load provides 150V/ 600V/ 1200V models with a power range of 6kW~24kW. PEL-5000C has a total of 24 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations, electric vehicle batteries and solar panels. PEL-5000C supports parallel connection for same voltage specification and different power models. PEL-5000C can support up to 8 units connected in parallel to provide a maximum power of 192kW.

For the scenario of battery testing, PEL-5000C specifically provides four battery discharge modes, namely CC+CV battery discharge test mode, CP+CV battery discharge test mode, CC+ UVP battery discharge test mode, and CP+ UVP battery discharge test mode. Users can choose a suitable test mode according to the test requirements. In addition to the four battery discharge modes, PEL-5000C also provides Time period discharge, Pulse discharge, and RAMP discharge modes. Users can set the discharge time, or discharge in the pulse current mode, or even set the rising/falling slew rate of the discharge current. These functions can be very flexible in the simulation of the battery discharge current waveform when an electric vehicle is running.

In order to meet the verification requirements of different DUTs, PEL-5000C provides a variety of test functions, including inrush current test mode, solar panel MPPT test mode, automated OCP, OPP test functions and 150 sets of parameter storage function. The 1200V model of PEL-5000C not only provides full power output at 1000V, but also provides 60% power output at 1200V output, which is higher than the 50% power output of other manufacturers of similar electronic loads. High-voltage batteries or chargers directly connected to the electronic load may cause damage to the electronic load. PEL-5000C has a built-in slow starter, which not only protects the DC load, but also saves the user's installation cost and setting time for measurement.

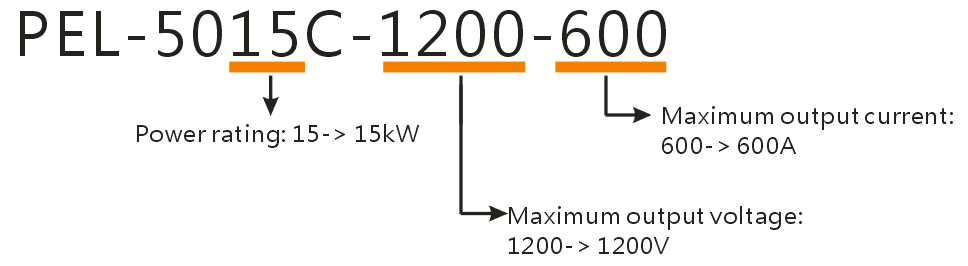

Missing alt text
PEL-5006C-150-600150V,600A,6kWHigh Power DC Electronic Load
PEL-5008C-150-800150V,800A,8kWHigh Power DC Electronic Load
PEL-5010C-150-1000150V,1000A,10kWHigh Power DC Electronic Load
PEL-5012C-150-1200150V,1200A,12kWHigh Power DC Electronic Load
PEL-5015C-150-1500150V,1500A,15kWHigh Power DC Electronic Load
PEL-5018C-150-1800150V,1800A,18kWHigh Power DC Electronic Load
PEL-5020C-150-2000150V,2000A,20kWHigh Power DC Electronic Load
PEL-5024C-150-2000150V,2000A,24kWHigh Power DC Electronic Load
PEL-5006C-600-420600V,420A,6kWHigh Power DC Electronic Load
PEL-5008C-600-560600V,560A,8kWHigh Power DC Electronic Load
PEL-5010C-600-700600V,700A,10kWHigh Power DC Electronic Load
PEL-5012C-600-840600V,840A,12kWHigh Power DC Electronic Load
PEL-5015C-600-1050600V,1050A,15kWHigh Power DC Electronic Load
PEL-5018C-600-1260600V,1260A,18kWHigh Power DC Electronic Load
PEL-5020C-600-1400600V,1400A,20kWHigh Power DC Electronic Load
PEL-5024C-600-1680600V,1680A,24kWHigh Power DC Electronic Load
PEL-5006C-1200-2401200V,240A,6kWHigh Power DC Electronic Load
PEL-5008C-1200-3201200V,320A,8kWHigh Power DC Electronic Load
PEL-5010C-1200-4001200V,400A,10kWHigh Power DC Electronic Load
PEL-5012C-1200-4801200V,480A,12kWHigh Power DC Electronic Load
PEL-5015C-1200-6001200V,600A,15kWHigh Power DC Electronic Load
PEL-5018C-1200-7201200V,720A,18kWHigh Power DC Electronic Load
PEL-5020C-1200-8001200V,800A,20kWHigh Power DC Electronic Load
PEL-5024C-1200-9601200V,960A,24kWHigh Power DC Electronic Load

Features

Maximum power up to 192KW

Up to 8 units of master/slave parallel control

5-digit digital voltage, current and power meter

Large LCD Display

Display voltage value, current value, watt value at the same time

Suitable for power factor regulator (PFC) testing (600V, 1200V models)

Automatically perform OCP, OPP test

The power-on state value can be set

Constant current, constant resistance, constant voltage, constant power, constant current + constant voltage, constant power + constant voltage, dynamic and short circuit modes

Short circuit time can be set during short circuit test

Over current, over power, over temperature protection and over voltage warning

Voltage polarity display can be set to positive value ("+") or negative value ("-")

Support solar panel MPPT test

Optional Interface: GPIB, RS232, USB, LAN
