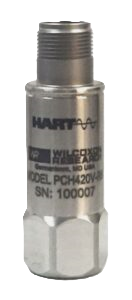

Wilcoxon - PCH420V-R6-HZ: HART-Enabled Velocity Sensor (Hazardous Area)

Wilcoxon

[NP] MODEL PCH420V-R6-HZ [CLASS I DIV 2 CERT]
EAR99

$970.00 USD

1

See product documents

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

HART-enabled vibration transmitter, velocity, configurable, MIL-C-5015, hazardous area certified

Vibration transmitter, HART-enabled, field-configurable, digital velocity sensor, three independently programmable vibration bands, top exit MIL-C-5015-style connector, user-configured full scale 0.5-5.0 in/sec peak, certified for use in Class I Division 2 and Zone 2 hazardous locations

PCH420V digital vibration transmitters output 4-20 mA vibration data with the added capability of digital communication with existing plant infrastructure via HART 7.0 protocol. The HART functionality allows field configuration of three separate vibration bands for multi-targeted fault detection from a single sensor. The ‘universal’ vibration transmitter can be configured in the field or on the bench for myriad monitoring applications.

Vibration transmitter features

  • HART protocol for digital communication with plant infrastructure
  • 3 independently programmable vibration bands
  • Enables single or multi-drop loop installations
  • Certified for use in Class 1, Div 2/Zone 2 hazardous areas

Specifications

Sensor output 4-20mA + HART digital protocol
Measurement unit Velocity
Detector type RMS, Peak, True Peak (user configurable)
Full-scale range 0.5 - 5.0 IPS (user configurable)
Frequency response, ±3dB 3 Hz - 1950 Hz (user configurable)
Connector style MIL-C-5015, 2-pin
Connector orientation Top exit
Temperature range -40°C to +105°C
Weight 115 grams
Hazardous area approvals Class I, Div 2, Zone 2; ATEX II 3G Ex nA nC; IECEx Gc Ex nA nC
