MIL-MG3 Series

HVT Technologies

All-in-one indirect lightning test system covering Waveforms 1, 2, 3, 4, 5A, and 6. Supports PIN injection, cable-bundle, and ground-injection methods.

Choose Quantity:

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

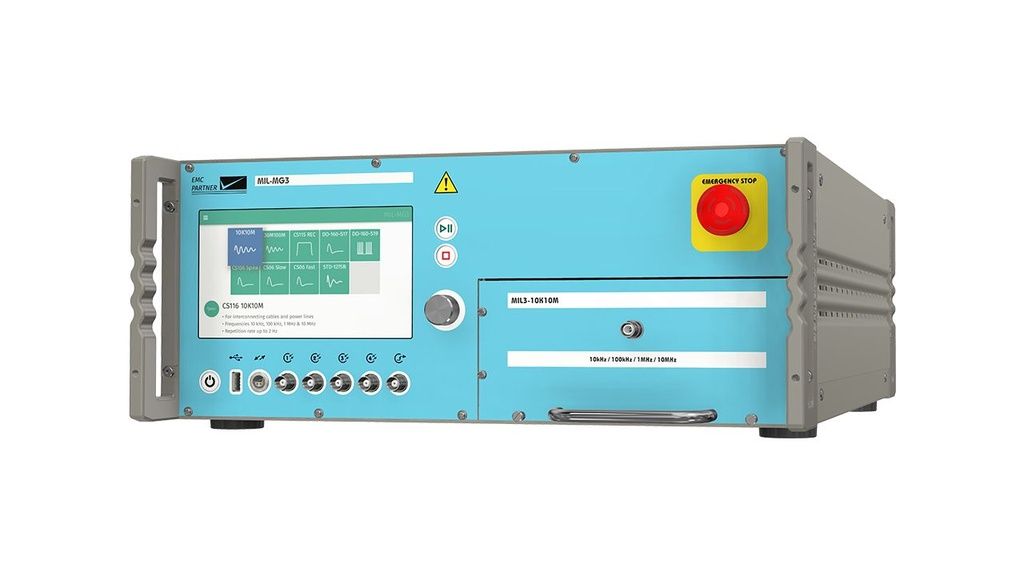

Portable multifunction impulse test generator with plug-ins for MIL-STD and DO-160 applications

Portable multifunction impulse test generator with plug-ins for MIL-STD and DO-160 applications. Test capability is easily extended with the seven plug-in modules. Couplers and calibration accessories complete the solution.

A versatile, flexible system that uses modules to provide a wide variety of impulse types for many applications. All versions of MIL-STD-461 impulse test requirements are available, including CS06, CS106, CS115 and CS116. Additional modules are available for DO-160 section 17 and 19 applications. A full range of test and calibration accessories compliment this practical solution. A colour touch panel assists with test programming through the use of graphic help functions. The integrated web server makes it easy to view test report data in any internet browser.

Universal large-aperture coupler for CS115/CS116


Touchscreen control with built-in web-server/report access


Field-upgradeable hardware/firmware



Product Standards

  • MIL-STD-461 / CS116
  • MIL-STD-461 / CS106
  • MIL-STD-461 / CS115
  • MIL-STD-1275
  • MIL-STD-461 / CS06
  • RTCA DO-160 - Section 17
  • RTCA DO-160 - Section 19
