ISTA 3A & Amazon SIOC Parcel Vibration Test Systems

SafeLoad TT

Select a Model:

Max. Load Weight (lbs / kg) :

331 lbs / 150 Kg

Available Table Size (in) :

33" x 33" , 49" x 49" or Custom

Table Size (cm) :

82.5 cm × 82.5 cm or Custom

Stroke (mm / in) :

70 mm / 3"

Frequency (Hz) :

200Hz Standard, 300⁺ Hz Option

1

Accessories

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

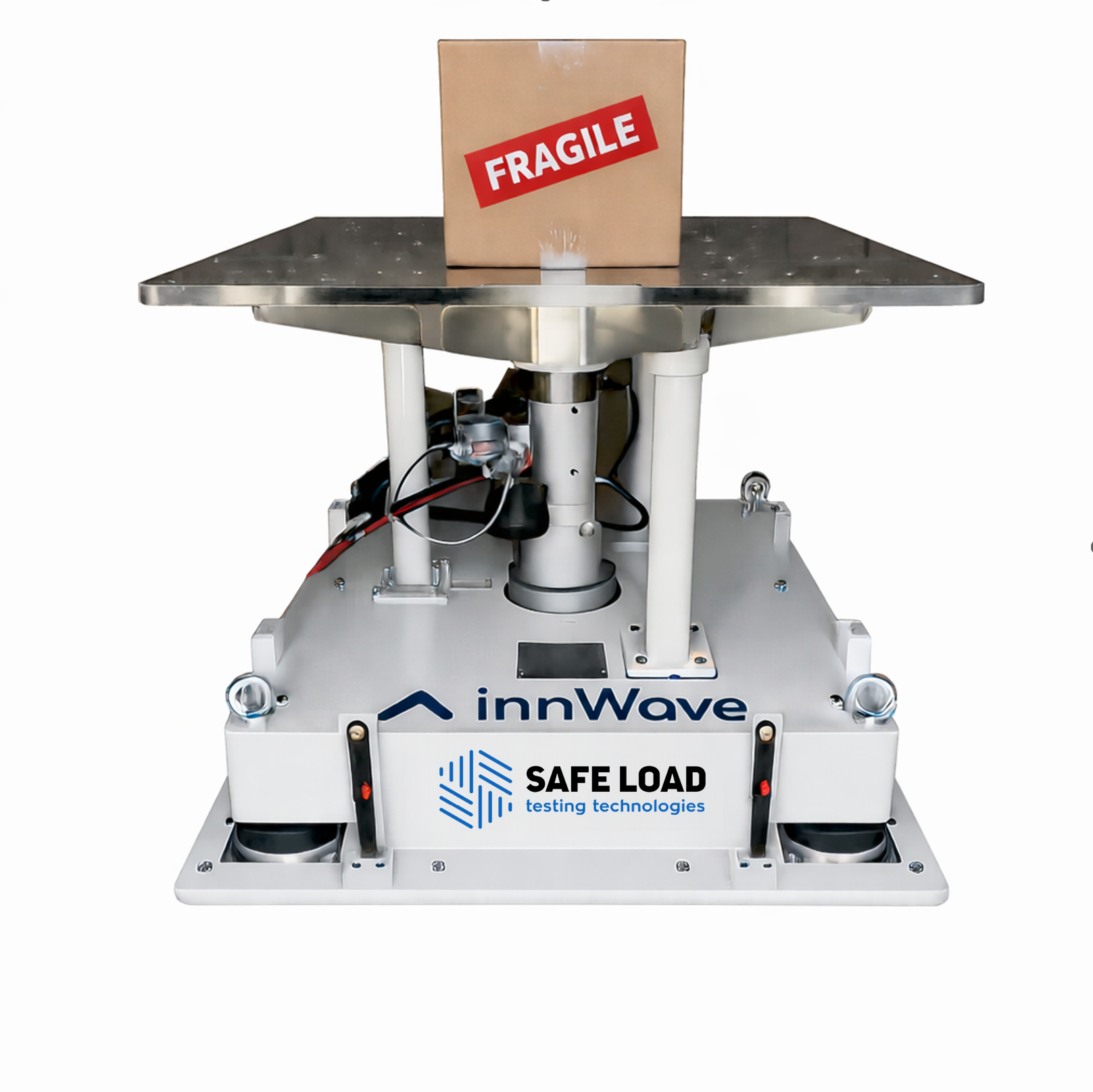

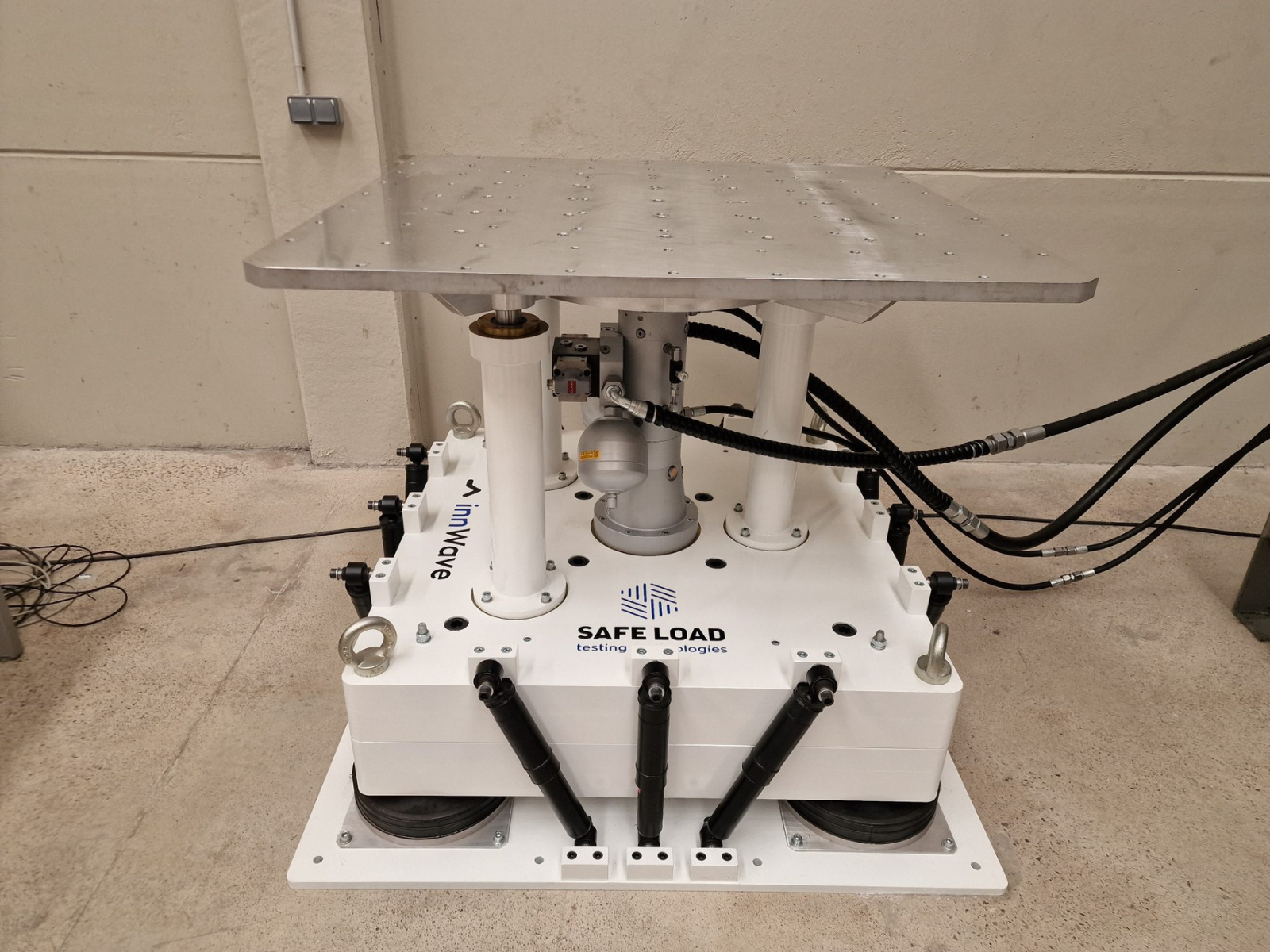

Vertical Vibration Testing System

The innWave vertical vibration testing system assesses resonant frequencies and the fatigue resistance of products and packaging. helps manufacturers reduce shipping damage, improve packaging efficiency, and ensure product integrity by reproducing vertical motion profiles that reflect real-world distribution conditions with precision and reliability.


The vertical vibration testing system is engineered to replicate the vibrations products and packages experience during real transportation. With advanced control technology and precision motion, it enables manufacturers to evaluate packaging durability, optimize design, and reduce product damage.

Compact, powerful, and easy to install, it delivers reliable data to ensure packaging performance throughout the distribution cycle.

  • Wide frequency range: operates up to 200–300 Hz, providing accurate simulation for multiple transport conditions. Sine and high frequency options are available for every model or custom design.
  • Adjustable stroke: offers 70 mm (3 in) and 150 mm (6 in) displacement suitable for both light and heavy loads.
  • High load capacity: handles test items ranging from 150 kg to 3000 kg (330–6614 lbs).
  • Independent control software: the intuitive Vibration Research controller supports sine, random, and recorded vibration tests.
  • No foundation required: features a dual isolation system with a steel seismic mass for stability and easy installation.
  • Optional expansion: compatible with the Pitch & Roll Module and climate chamber integration for enhanced, multi-axis testing capabilities.

Key Features

Machine type: hydraulic system

Frequency range: 1.5 Hz to 200–300 Hz (depending on model configuration)

Stroke: 70 mm (3 in) and 150 mm (6 in) vertical displacement

Maximum load capacity: 150 kg to 3000 kg (≈ 330–6614 lbs)

Custom dimensions available upon request

Frequency control: fully programmable through innWave Vibration Controller Software

Control system: independent controller supporting sine, random, and recorded PSD test modes

Vibration reproduction: standard and recorded Power Spectral Densities (PSDs) from real transport routes

Isolation system: dual vibration isolation with steel seismic mass; no special foundation required

Motion capabilities: vertical vibration; compatible with Pitch & Roll Module for 3-axis motion

Installation options: can be installed inside a climate chamber for environmental vibration testing

Operation modes: sine, swept-sine, random, shock-on-random, sine-on-random, random-on-random

Software features: intuitive interface for configuration, real-time monitoring, and data recording

Power requirements: configurable per model and regional standards
