IMU-MGE

HVT Technologies

Modular platform for surge, EFT/burst, and ring-wave testing with optional upgrades for ESD, dips/interrupts, common-mode, and differential-mode tests.
See all documents

Choose Quantity:

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

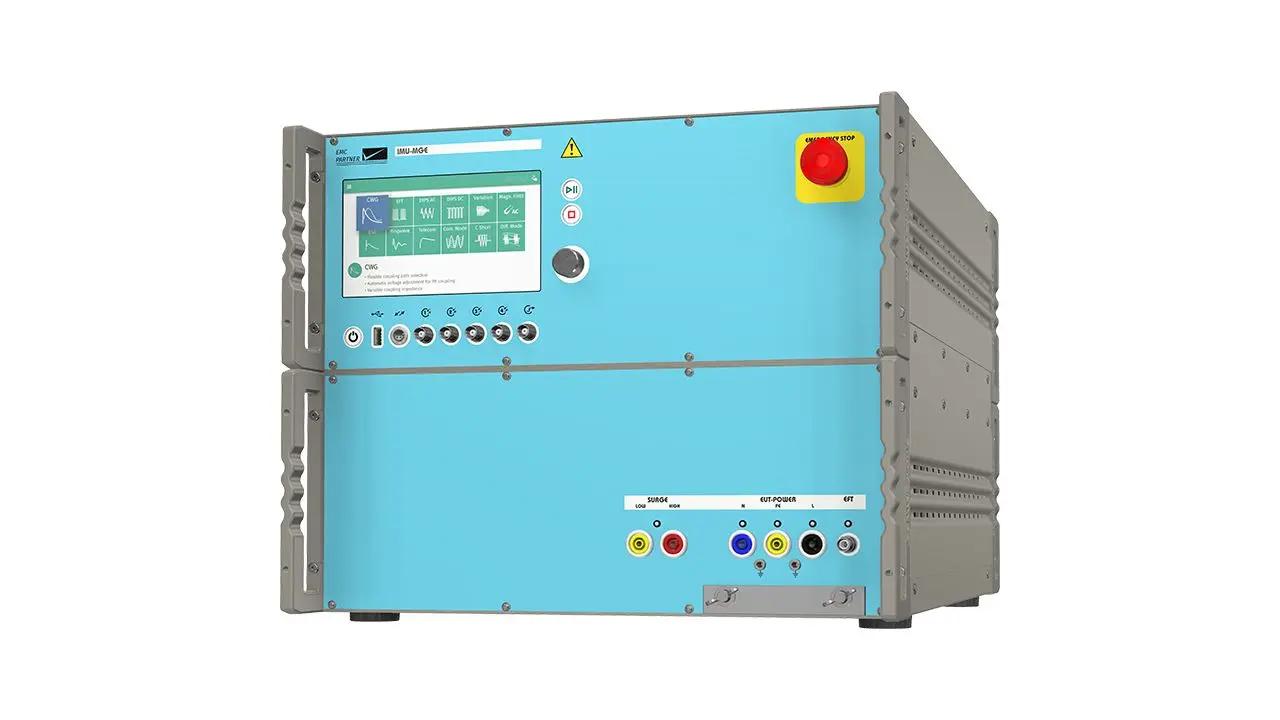

Generator for EFT / Burst, Surge & Ringwave & 10/700 impulse - 8KV

Compact generator for EFT / Burst, Surge, 100 kHz Ringwave and 10/700 impulses up to 8KV. Integrated 16 A CDN. Extend with ESD, Dips/Interrupts and Common Mode.

Modular test generator with colour touch screen and intuitive software. An integrated help with graphics guide the user through fast and efficient setup and operation. Each generator can be extended on site with up to 10 test types. Configurations for IEC / EN and ANSI test requirements can include Surge (CWG), 100 kHz Ringwave, 10/700 and EFT all up to 8kV. DIPS/Interrupts, variations, Common Mode, Differential Mode and ESD further enhance the generator creating a compact test solution. A test library of basic and generic requirements is included as standard. The integrated web server enables access to test report and setup files from any internet browser.

Modular, upgrade-on-site architecture


Integrated colour touch interface and built-in web server for reporting


Broad accessory and CDN ecosystem (single- and three-phase options)


  • Product Standards

  • ANSI/IEEE C37.90
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-8
  • IEC 61000-4-9
  • IEC 61000-4-11
  • IEC 61000-4-12
  • IEC 61000-4-16
  • IEC 61000-4-19
  • IEC 61000-4-29
  • IEC 61000-4-34
  • ITU-T K.20
  • ITU-T K.21
  • ITU-T K.44
