DUAL-CHAMBER HEAT-CURING OVEN

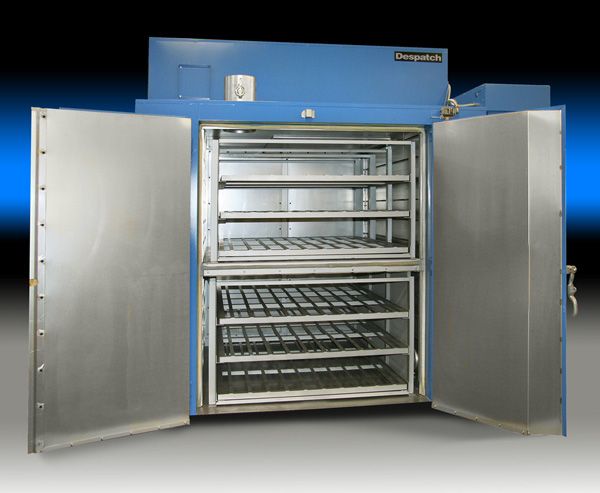

An industrial equipment manufacturer needed an oven to both heat-cure and store sheets of material at different temperatures in a single oven. Despatch designed a custom TA truck-in and walk-in oven with an insulated horizontal center panel to separate the oven interior into upper and lower chambers, each capable of different processing temperatures. Despatch provided upper and lower racks with shelves for fast, efficient product loading and unloading.
Additional fresh air inlets with manual dampers were installed in the lower chamber to allow the chamber to operate 10-20°C cooler than the upper chamber. Adjustable louvers in the chambers provided temperature uniformity throughout each chamber. An additional thermocouple with digital readout was added to monitor the lower chamber temperature.
