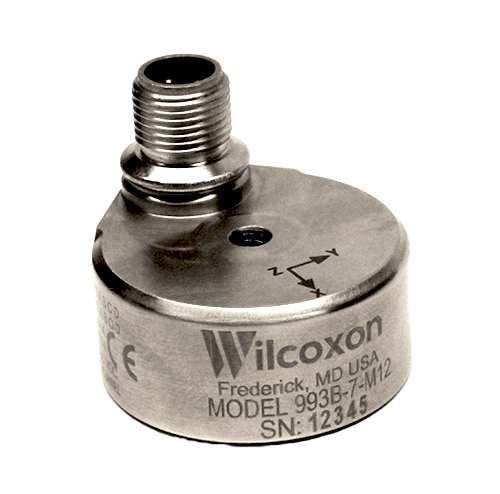

Wilcoxon - 993B-7-M12: Triaxial IEPE Accelerometer (M12 Connector)

Wilcoxon

$1,270.00 USD

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

3-axis accelerometer with M12 connector, 100 mV/g

Triaxial accelerometer, 100 mV/g sensitivity, ±10% sensitivity tolerance, top exit 4-pin M12 connector, 10-32 captive screw

Wilcoxon's triaxial accelerometers comprise three sensing elements within a single housing. 3-axis accelerometers enable multi-directional data acquisition in a single measurement. Proponents of 3-axis accelerometers cite the increase speed of data collection, inherently consistent readings, and a reduction in wiring for permanent installations.

3-axis accelerometer features

  • Rugged hermetic design
  • 3-axis simultaneous sensing
  • Broad frequency response
  • Captive mounting screw
  • EMI/RFI protection

Specifications

Sensor output Dynamic vibration (IEPE)
Sensitivity 100 mV/g
Sensitivity tolerance ±10 %
Frequency response, ±3 dB 2 Hz - 7,000 Hz (X & Y axes), 2 Hz - 10,000 Hz (Z axis)
Mounting thread 10-32 captive screw
Connector style M12, 4-pin
Connector orientation Top exit
Full-scale range 60 g peak
Resonance frequency 33 kHz
Temperature range -50°C to +120°C
Weight 124 grams
Hazardous area approvals Non-approved; approved models available
