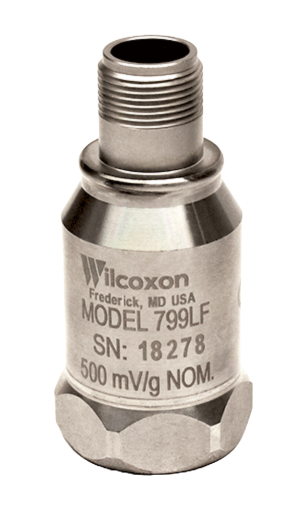

Wilcoxon - 799LF: Ultra-Low Frequency Accelerometer ($500 \text{ mV/g}$)

Wilcoxon

Top exit, low noise, low frequency (0.1 Hz), MIL-C-5015 connector 500 mV/g, ±5% sensitivity tolerance

$570.00 USD

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

High sensitivity, ultra-low noise sensor, filtered accelerometer, 500 mV/g

IEPE accelerometer, ultra-high sensitivity 500 mV/g, ±5% sensitivity tolerance, ultra-low noise electronics for clear signals at very low vibration levels, 0.1 Hz low frequency response, low pass filtered to eliminate high frequencies, top exit 2-pin MIL-C-5015 connector

IEPE accelerometer features

  • High sensitivity
  • Ultra low-noise electronics for clear signals at very low vibration levels
  • Low pass filtered to eliminate high frequencies
  • Optimized for 15V supply
  • ESD protection

Included accessories

  • SF6 mounting stud

Specifications

Sensor outputDynamic vibration (IEPE)
Sensitivity 500 mV/g
Sensitivity tolerance ±5 %
Frequency response, ±3 dB 0.1 Hz - 2,500 Hz
Mounting thread 1/4-28 UNF tapped hole
Connector style MIL-C-5015, 2-pin
Connector orientation Top exit
Full-scale range 10 g peak
Resonance frequency 18 kHz
Temperature range -50°C to +120°C
Weight 205 grams
Hazardous area approvals Non-approved
