Standard Features:

• High volume vertical down airflow for superior temperature uniformity and process reliability
• Five standard models to meet your heat processing requirements
• Maximum temperature ranges up to 260ºC (500ºF)
• Proven reliability and built to last
• Small Footprint
• Class A option for use with flammable solvents available
• HEPA filtered option for clean process application available

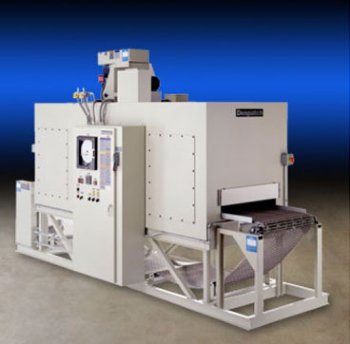

PC SERIES CONVEYOR OVENS

Despatch PC Series Conveyor Ovens are designed for process versatility and reliability. They achieve superior air temperature uniformity on all interior parts due to high-volume, vertical down airflow. The continuous belt design is ideal for large quantities of similar work pieces being processed. Typical applications include preheating, curing, bonding, drying and heat treating. Options include Class A models specifically designed for flammable solvents and a HEPA (High-Efficiency Particulate Air) filtered model for applications that require Class 1000 cleanliness. Ovens provide extremely consistent and repeatable process results at temperatures up to 260ºC (500ºF).

PC Series Options

The PC Series Continuous Ovens can be configured to maximize production capacity and optimize floor space. They can be equipped with optional features as listed below to meet your specific production needs. Please contact Despatch for more information on a PC Series oven configured for your application.

• Temperature maximum ratings: 260ºC (500ºF), 343ºC (650ºF), 454ºC (850ºF)
• Variable conveyor speeds
• High volume vertical down airflow for superior temperature uniformity and process reliability.
• Conveyor extensions on each end provides loading/unloading areas
• Class A options for handling flammable solvents
• Optional conveyor systems including flat wire, mesh belts, non-metallic belts, and more
• Clean environment air filtration including HEPA filters for Class 1000 inside the chamber
• Heavier load capacity.
