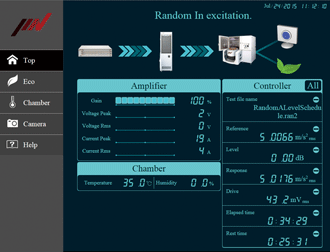

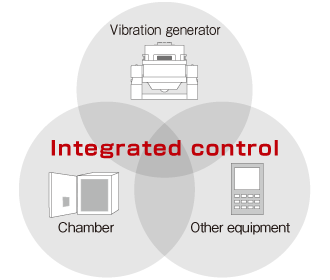

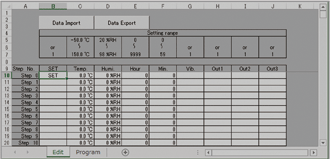

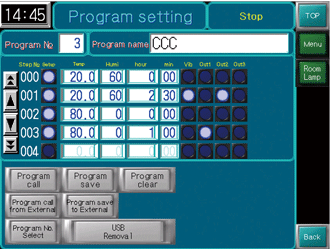

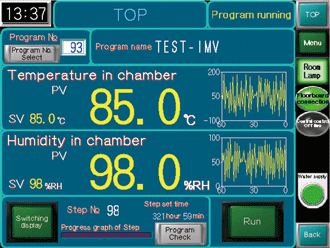

Temperature, Humidity & Vibration Combined Systems

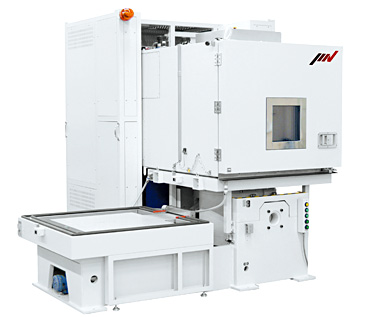

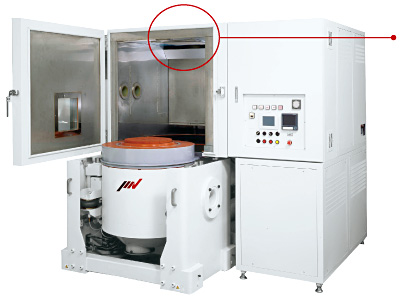

Chamber for Vertical Excitation

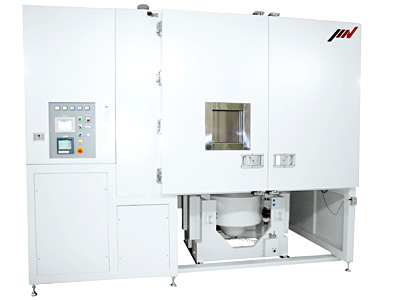

Docking image of combined systems

Chamber for both Vertical and Horizontal Excitation

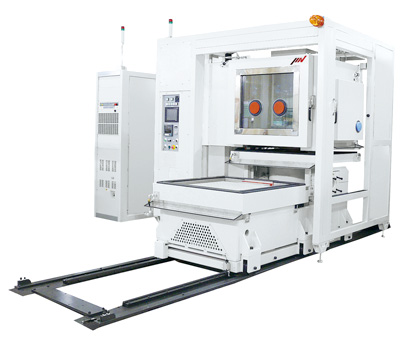

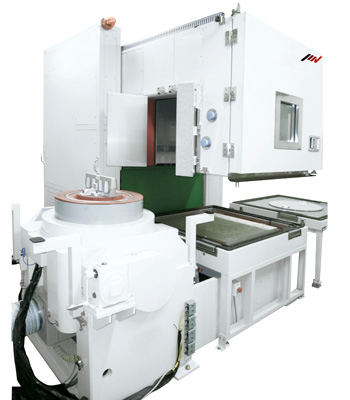

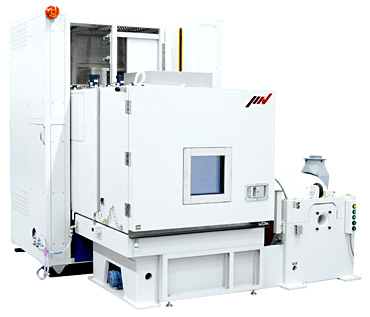

Vibration shaker system combined with a horizontal slip table.

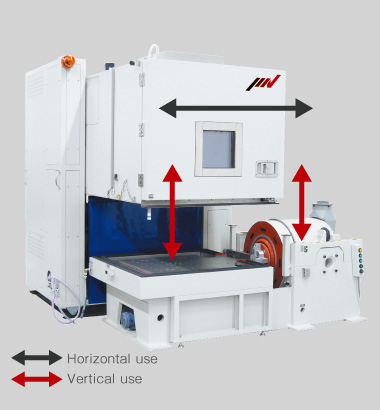

With a combination of a rail support for horizontal movement and a lift support for vertical movement, this chamber accommodates testing in both the vertical and horizontal axes.

■Rail and lift support

Model: Syn-3HA-70-VH

Internal dimensions	W 39.3 x D 39.3 x H 39.3 in
Temperature range	-70℃ to +180℃
Humidity range	20% to 98%RH
Cool-down time	1℃/minutes or more (Curve gradient)
Heat-up time	2℃/minutes or more  (Curve gradient)

■Option for chambers for both vertical and horizontal excitation

Optional crane

Adding a dedicated crane allows for the safe and simple loading and unloading of test specimens.

Rail support and door with observation window

Space-saving rail support for the vibration shaker system.
The test specimen can be monitored using the observation window in the door.

Side window

A side window allows for chamber-combined docking with the specimen attached to the shaker for vertical excitation use.

Chamber for Multi-Axis Excitation

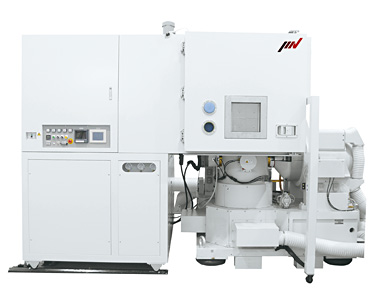

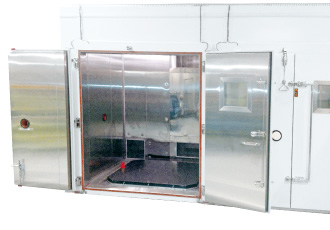

Temperature and humidity chamber for a multi-axis vibration shaker system.
Total test time can be reduced by eliminating the need to reconfigure for testing each axis.

2-axis

Model: Syn-4HA-40-M

Internal dimensions	W 47.2 x D 47.2 x H 39.3 in
Temperature range	-40℃ to +150℃
Humidity range	20% to 98%RH
Cool-down time	+20℃ → -40℃ In 80 minutes (Load condition: combined + aluminum 132 lbs)
Heat-up time	-40℃ → +150℃ In 80 minutes (Load condition: combined + aluminum 132 lbs)

3-axis

Model: Syn-3HA-40-M

Internal dimensions	W 39.3 x D 39.3 x H 39.3 in
Temperature range	-70℃ to +180℃
Humidity range	20% to 98%RH
Cool-down time	+20℃ → -70℃ In 40 minutes (Curve gradient)
Heat-up time	-70℃ → +180℃ In 40 minutes (Curve gradient)
