TTS-series (6 Degree of Freedom Systems)

Multi-Axis Systems

Multi-Axis (6 DOF Type)

At least 6 vibration shakers are combined for 6 degrees of free motion with integrated control.
In addition to X, Y, and Z axis motion, rotational motion, roll, pitch and yaw are also possible with the use of spherical bearings.
Using electrodynamic vibration generators, IMV systems can reproduce waveforms in a wide frequency range with a high degree of accuracy.
System maintenance is easy. Systems comprise at least six vibration generators that act along orthogonal axes to generate the roll, pitch and yaw motion. A spherical bearing is used to allow the rotational motion. By using electrodynamic vibration generators the system can operate over a wide frequency range with a high degree of accuracy. System maintenance is straightforward.

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

Overview
Videos

Product Details

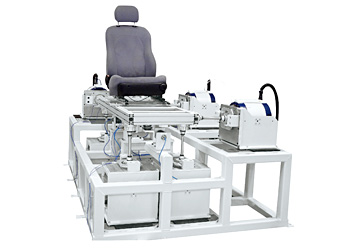

■Ride comfort evaluation system

The addition of rotational motion to a three-axis system enables 6-degree-of-freedom testing, as is required for vehicle seat evaluation, for example.

Excitation direction	X axis	Y axis	Z axis
Rated Force (lbf)	877	1,754	3,597
Maximum displacement (inp-p)	5.9	4.0	4.0
Frequency Range (Hz)	1-100
Table Size (in)	71×71
Vibration Generator	1	2	4

(Per 1 system)

■Large-scale 6 DOF vibration shaker system

A total of 10 vibration generators (6 vertical and 4 horizontal) and a large size 157- by 138-inch table allow simultaneous 6 DOF vibration testing. This versatile platform is ideal for testing large items such as railway carriage components.
