SHOCK & VIBRATION DATA RECORDERS

(Click to see larger image and other views)

innRecord Transportation Data Loggers

Designed for monitoring the real distribution risks suffered by the load during the distribution cycle (axial vibrations, angular vibrations, shocks, accelerations) Free Automatic Reporting Software for profile, graphics generation and PSD breakpoints for shaker simulation..

The innRecord is an essential device to record the shocks, vibrations and accelerations that take place during transportation. This information can later be used in the design/optimization of the packaging to guarantee the safety of the goods.

Download Literature

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

Overview

Product Details

Why choose our Field Data Loggers?

Go Anywhere: Convenient, Adaptable, and Reliable:

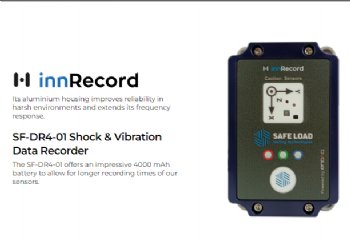

The New DR4-01 and DR4-01 have been developed to overcome several ,long standing, technological limits.
Now users can benefit from the Industries most Intuitive Operation and advanced Sensors integration to quickly and accurately characterize a vibration, shock or the full environmental profile. Wifi and USB make uploading data easy and transportation route analysis is simple. With a DR Series from Safe Load Testing you get fast results without the need for a full DAQ system, or having to generate your own PSD breakpoint calculations.

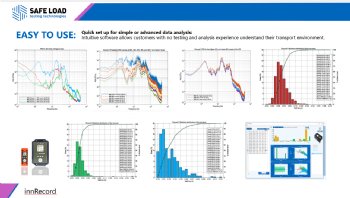

Easy to Use. Quick to set up for simple or advanced data analysis: Intuitive software allows customers with no testing and analysis experience to utilize the innRecord to understand their environment.

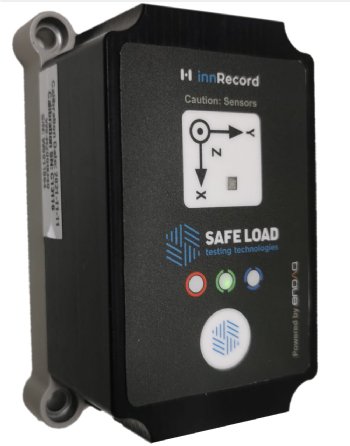

The Safe Load Testing DR4-01 and DR4-02 able to record continuously tri-axial vibrations, accelerations, pitch and roll movements, and shocks inside trucks, ships or airplanes during the distribution chain.

The innRecord can register routes as a function of strength and frequency of vibrations during transportation (PSD) in 3 dimensions and the rotation in 2 axis (pitch and roll).

All data is recorded in a micro SD card and the registered routes can be reproduced in the vibration simulator tester for packaging optimization.

Furthermore, the collected data can be used with the families innDrop, innSlide, inWave and innShock to reproduce the transport conditions suffered by the load.

Free Standalone Software :
Get Quick configuration, analysis & batch file conversion:

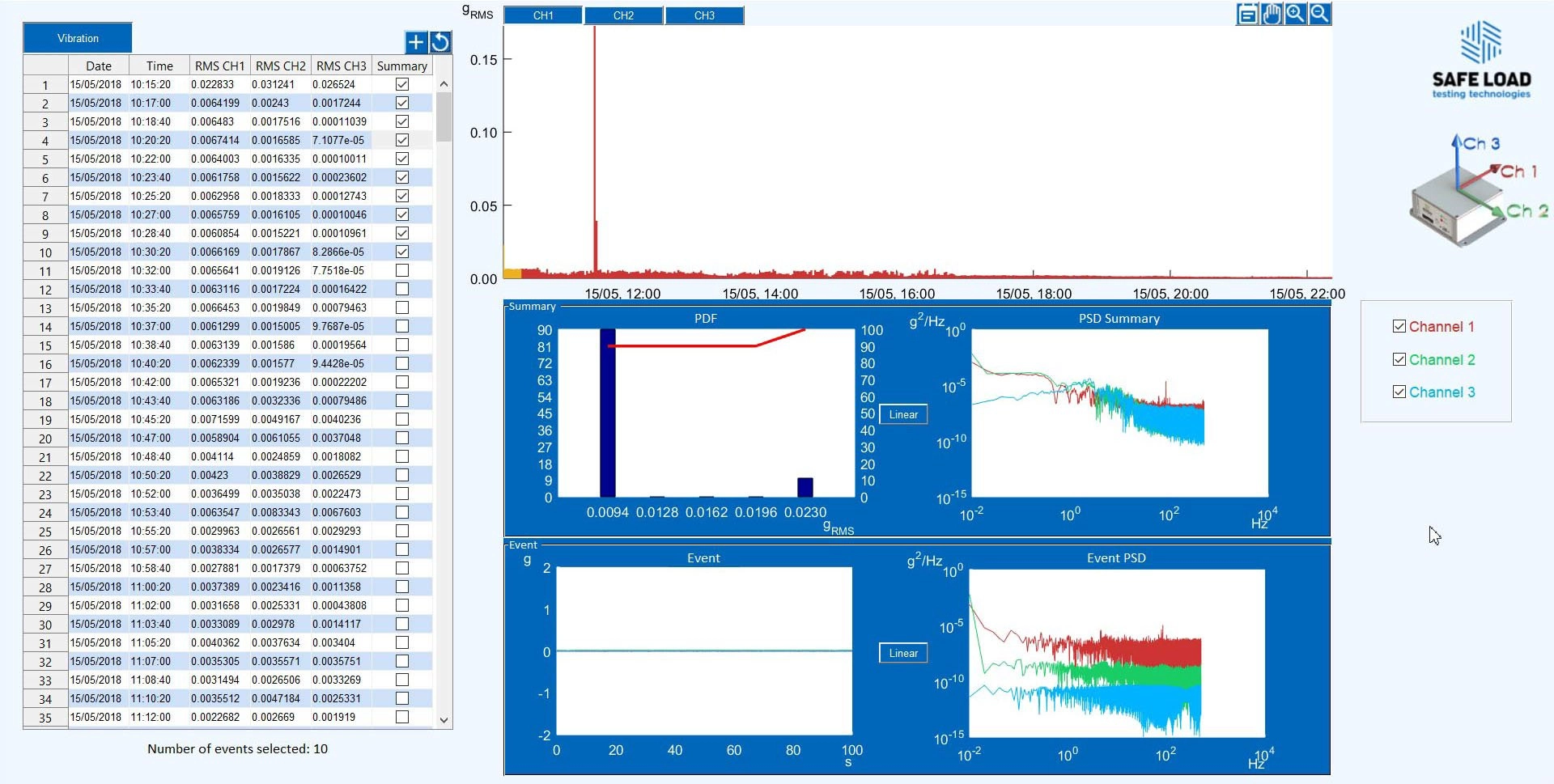

›FFT analysis, PSD, Spectrogram, Digital filtering.
›Export data to CSV and Matlab.

› Plus advanced, but easy, transport simulations analysis (vibration, shocks, pitch & roll). Automatic report, profile and graphics generation. Fast tool to get PSD breakpoints for shaker simulation.

›PSD for three orthogonal axes for the 100% of the CDF.

›PSD for three orthogonal axes for the highest 20% and lowest 80% events of the CDF.

›EASY Probability PSD overlays at 80%, 90%, 95%, 99% and 100% “at or below” levels.

›Statistical distribution of the RMS level.

Features

> Axial vibration accelerometer Triaxial MEMS 3 axes (x,y,z)

> Shock accelerometer Triaxial capacitive 3 axes (x,y,z)

> Gyroscope Dual-Axis MEMS 2 axes (x,y)

> Timer trigger: continuous recording

> Memory type Micro SD- card

> User set up interface Software DR™

Mechanical specifications

> Size 100x100x50mm.

> Chassis material / Material case: Aluminum.

> Weight: 800 gr.

> Environmental: Weather resistant (-20° to +60° C).

> Optional Mounting: Magnet / Structure attachment.

Compatibility

The information logged by the Safe Load TT’s shock recorder is stored in a micro SD card.

Then, the collected and subsequently analyzed information can be reproduced with the innDrop, innSlide, innWave and innShock product families, allowing to simulate the real conditions in which the cargo is transported to be foreseen.
