TILT TESTING TOOL

Tilt testing tool is a mobile, easy-to-transport device specifically designed for tilt testing to evaluate load stability during transportation.

The innTilt family is a useful tool for packaging optimization and can also be used as a quality control tester, as the repeatability is guaranteed.

Download Literature

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

Overview
Promotion Video

Product Details

Why choose Safe Load TT tilt testing tool?

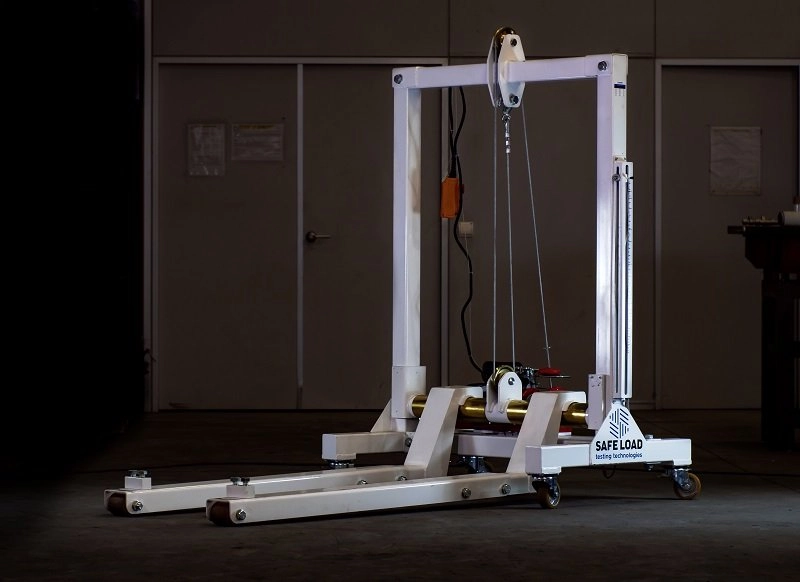

TRANSPORTABLE

The tool is detachable for easy transportation and handling, weighing less than 300 kg.

The tool is available in 3 transportable models for a maximum inclination angle of 30%:

> SF-TL500: up to 500 Kg

> SF-TL1000: up to 1000 Kg

> SF-TL1500:up to 1500 Kg

TECHNICAL SPECIFICATIONS

> Electrical machine

> Detachable for easy transportation and handling, weighing less than 300 kg.

> Load up to 1.500 Kg / 3,306 lb.

> Up to 30⁰ inclination

> Automatic stop at setting angle

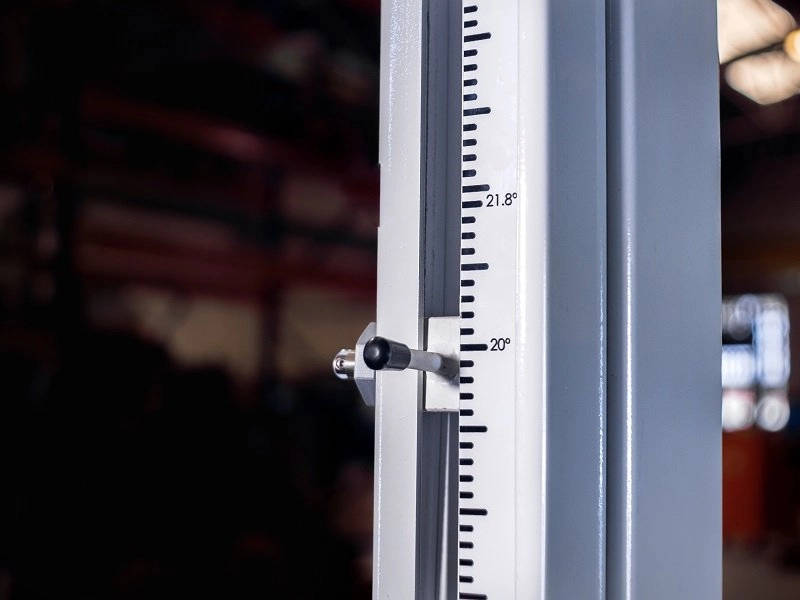

> Vertical ruler to set the tilt angle

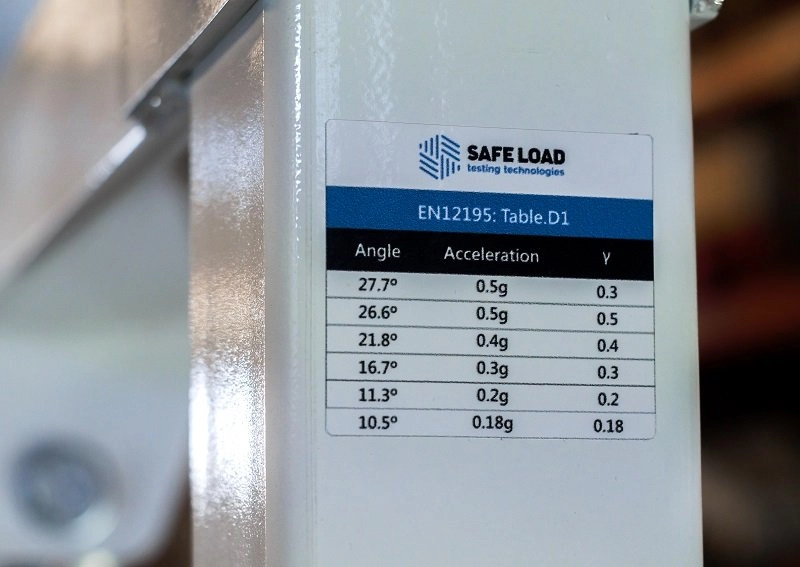

EN 12195 STANDARD

Designed in line with the EN 12195 standard, used to ensure the load securement on a road transport. More specifically, the test in annex D2 is used to validate the lashing systems for road transportation.

By applying the equations specified in the standard, it is possible to obtain an equivalent acceleration based on the coefficient of sliding friction between the surface and the element being studied.

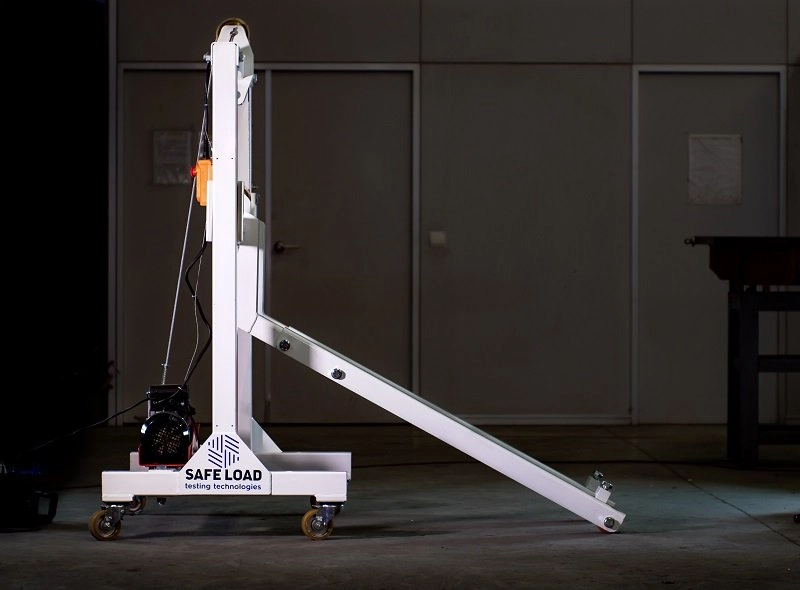

USER-FRIENDLY DESIGN

The tilt testing tool has user-friendly design: it allows for high operator intuitiveness and simple and inexpensive maintenance.

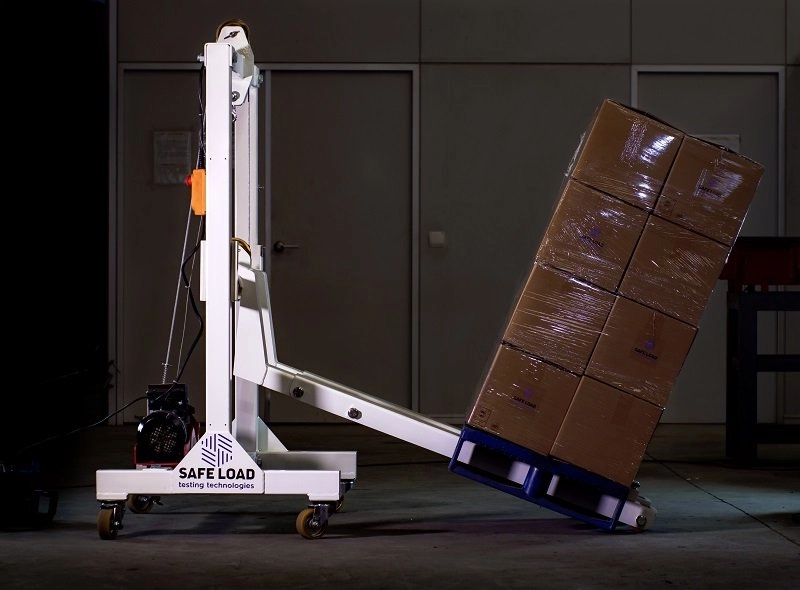

VALIDATING TOOL

Suitable method to quickly compare different samples (such as during design) and measure the stability at the end of the production line without adding more elements to it.

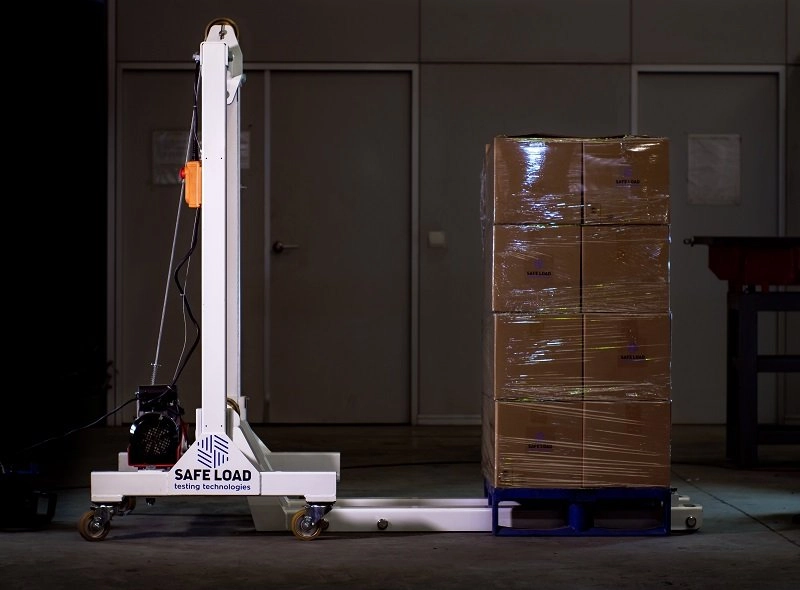

PACKAGING OPTIMIZATION TOOL

Additionally, this method is highly recommended for quality control systems. It could also be useful for highly rigid products that are transported in a compact manner (as seen in the furniture sector), provided that the packaging has limited slack. In case specific equipment to perform the tilt test is used, repeatability is guaranteed, meaning that it is a very useful tool to study a package’s optimization and achieve load stability.
