COM Express Tigerlake Type-6 Module w/11th Gen Intel Core & Xeon Celeron Processors

(Click to see larger image and other views)

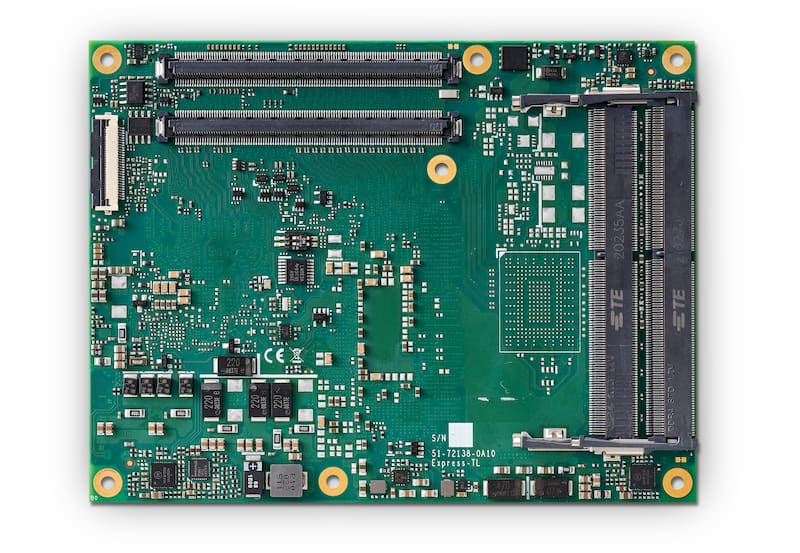

ADLINK COM Express Type-6 Tigerlake

ADLINK cExpress-TigerLake 11th Gen Intel® Core™ i7/i5/i3 and Celeron™ processor, is the first COM Express module to support PCI Express Gen 4 at 16 GT/s, effectively doubling the bandwidth of previous generations. Additionally if features support for 2.5GbE Ethernet, leveraging existing Cat5e cable infrastructure being used for 1GbE Ethernet, it supports four USB 3.2 ports with transfer rates up to 10Gb/s.

Download Literature

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

Product Details

About COM Express Type 6

The release of COM Express COM.0 Revision 2.0 brings Computer-on-Modules in line with current and future technology trends by providing for the latest graphics interfaces (DisplayPort/DVI/HDMI), PCI Express Gen 2, and USB 3.0. The newer Type 6 pinout is based on the popular Type 2 pinout, but with legacy functions replaced by Digital Display interfaces (DDI), additional PCI Express lanes, and reserved pins for future technologies.

Intel Atom E3900 series (codename: Apollolake)
	nanoX-AL, Atom E3950 nanoX-AL, Atom E3940 nanoX-AL, Atom E3930

Intel Atom E3800 series (codename: Baytrail)
	nanoX-BT, Atom E3845 nanoX-BT, Atom E3827 nanoX-BT, Atom E3826 nanoX-BT, Atom E3825 nanoX-BT, Atom E3815 nanoX-BT, Atom E3805
