MagnaDC TS Series Programmable DC Power Supply

01.04.2022

MagnaDC Logo

TS Series

Programmable DC Power Supply

Key Facts

  • 275 models
  • 3U to 16U rack-mount
  • 5 kW to 100 kW power levels
  • 5 Vdc to 6000 Vdc output voltage
  • 0.8 Adc to 8000 Adc output current
  • SCPI Remote Programming API
  • High Accuracy Measurements
  • Programmable Protection Limits
  • NI LabVIEW™ and IVI Driver





AIR- OR WATER-COOLED, MADE IN USA, MANY OPTIONS FOR TAILORED PERFORMANCE


Programmable DC Power Supporting High Voltage and High Current Applications

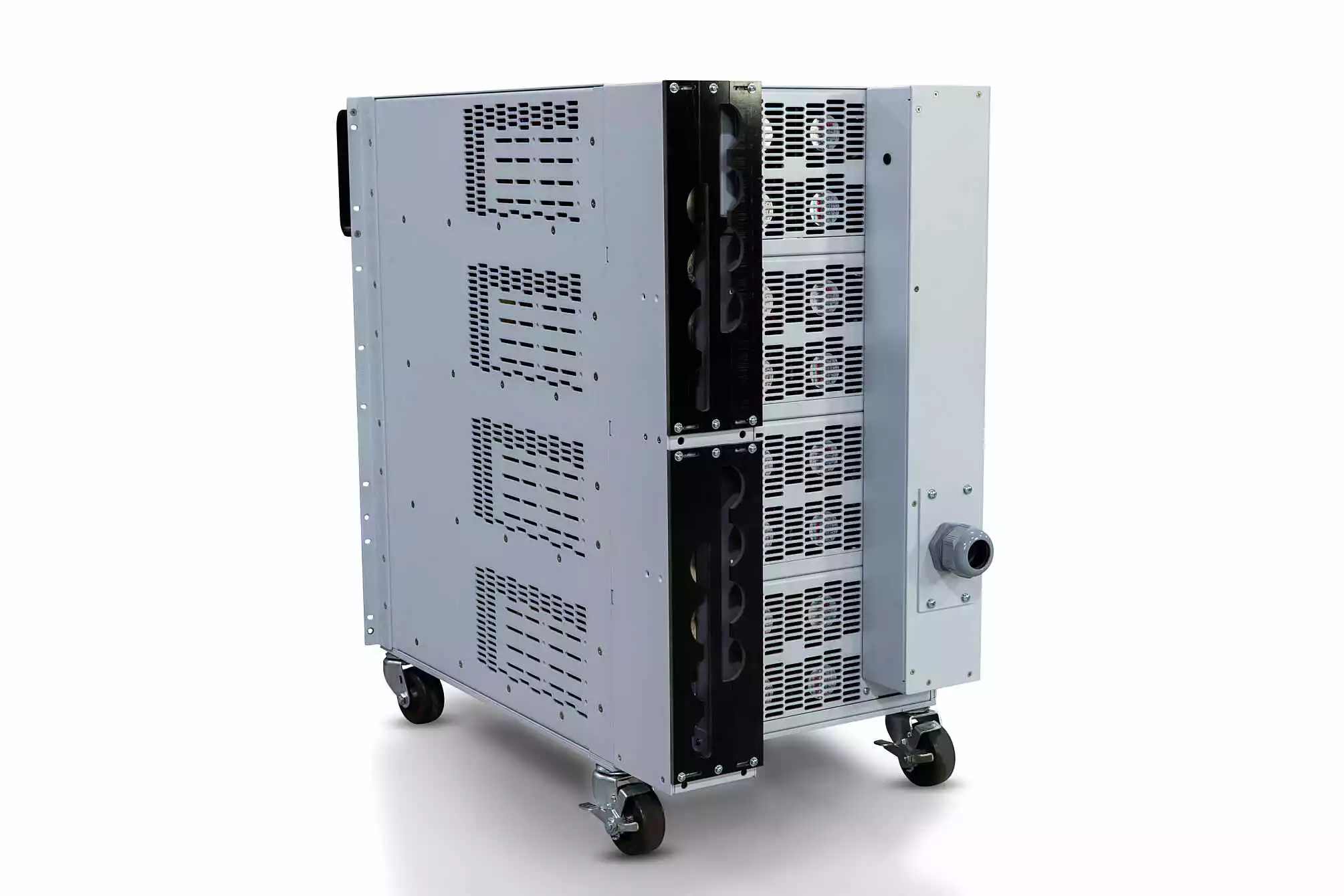

The TS Series offers many models spanning a wide voltage and current range, while still maintaining among the highest power density rack-mount packaging. The TS Series covers voltages from 5 Vdc up to 6000 Vdc (floating) and current levels from 1.2 Adc up to 8000 Adc. Models 5 kW to 15 kW are available in a 3U chassis, models 20 kW and 25 kW are available in a 4U chassis, models 30 kW are available in a 6U chassis, models 40 kW and 50 kW are available in an 8U chassis with removable casters, models 75 kW models are available in a 12U chassis with removable casters, and 100 kW models are available in a 16U chassis with removable casters. In addition, there are several special low voltage high current models, enabling a more cost-effective solution for these requirements. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232, Remote Interface Software, IVI drivers, and LabVIEW drivers for integration into a variety of programming environment.


Integrated Options

The following are the standard integrated options available for the TS Series. Refer to the Model Ordering Guide for details on how the option code is specified in the full model number.

+ISO

High Isolation Output

Available for models rated for 250 Vdc to 1000 Vdc, the +ISO option greatly increases the output isolation, used when the application demands floating or tying units in series beyond the standard ±1000 Vdc output isolation rating.
+HS

High Slew Rate Output

A hardware and control modification that replaces the standard output stage with one of low capacitance film and/or high RMS current rated aluminum electrolytic capacitors. This option provides higher bandwidth with faster output rise and fall times.
+GPIB

IEEE-488 GPIB

An integrated IEEE-488 GPIB communications port, allowing the product to be fully controlled and monitored using supported commands, as well as adding some additional interface specific commands.
+BD

Integrated Blocking Diode

An internally heatsinked protection diode on the positive output terminal of a MagnaDC programmable DC power supply to protect the product's output from reverse voltages far exceeding the product's output voltage rating.
+LXI

LXI TCP/IP Ethernet

An integrated TCP/IP Ethernet communications port, certified to the LXI Class C standard, allowing the product to be fully controlled and monitored using supported commands, as well as adding some additional interface specific commands.
+WC

Water Cooling

Using an integrated central heat exchanger and specially wound magnetic components, water cooling is available for select Magna-Power power supplies for use in densely packaged system cabinets, where heat removal by the product's standard air cooling presents a challenge.

Software Add-ons

The TS Series comes standard with control software and drivers available under Downloads. The following are additional software add-ons available.

PPPE-1

Photovoltaic Power Profile Emulation License

Order Code: PPPE-1
A software license for an additional power supply for users who have already purchased PPPE. Licensed by product serial number with unlimited seats.

Accessories

The following is a list of available external accessories for the TS Series.

RS485

RS485 Converter

Order Code: RS485
Industrial RS232 to Addressable RS485 Converter. Plugs into product's RS232 port.
UID46

UID46: Universal Interface Device 46

Order Code: UID46
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.
UID47

UID47: Universal Interface Device 47

Order Code: UID47
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.
USB

USB Edgeport Converter

Order Code: USB
Industrial Plug and Play USB to RS232 Converter. Adapter plugs into product's RS232 port.
