Unlock Advanced Testing Capabilities with EA Turnkey DC Power Racks

Integrate and Scale Devices for Comprehensive Testing Solutions

EA Turnkey DC Power Racks: The Future of High Performance Testing

As the world moves towards electrification, the demand for high-performance testing solutions for battery packs, fuel cell stacks, solar systems, and electrolysis systems is on the rise. EA’s Turnkey DC Power Racks offer a customizable solution, allowing you to select and integrate the ideal devices for your specific testing and simulation needs.

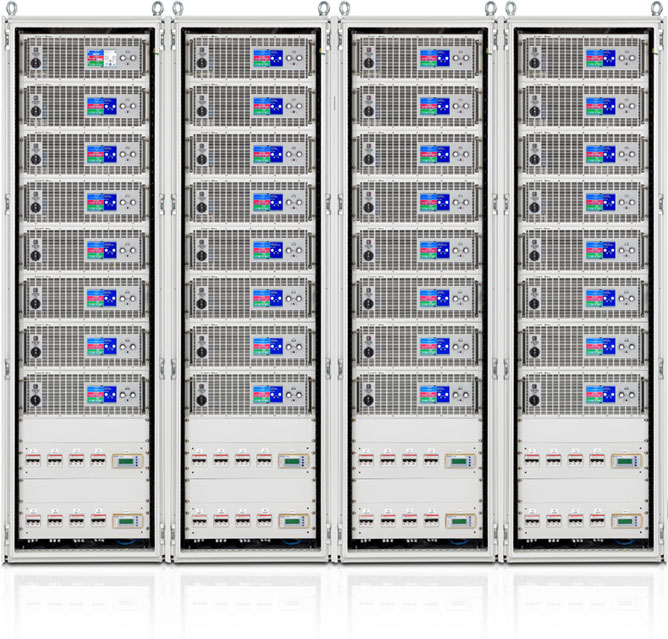

EA’s rack systems come in various sizes, including 42U, 38U, 24U, and 15U, and are compatible with 3U, 4U, and 6U devices. You can configure these racks with EA-10000 and EA-10000 Industrial series programmable power supplies, bidirectional power supplies, or regenerative loads. The modular design allows for easy parallel connection of devices to scale system performance. For instance, a 42U rack configured with five 60 kW units can deliver up to 300 kW. For maximum power output reaching 3.84 MW, you can connect up to 64 units across 13 racks.

By offering such flexibility and scalability, EA’s Turnkey DC Power Racks provide a comprehensive solution for a wide range of testing applications, ensuring you can meet the evolving demands of the electrification landscape.

Enhanced Modules & Power

Scalable Rack Systems: Options include 42U, 38U, 24U, and 15U configurations.

Versatile Device Integration: Accommodates 3U, 4U, and 6U height units.

High Power Density: Achieve 300 kW with just one 42U rack featuring five 60 kW/6U units.

Unmatched Scalability: Reach up to 3.84 MW with only 13 racks, supporting up to 64 devices.

Advanced Devices & Series

Diverse Device Types: Integration options for programmable power supplies, bidirectional power supplies, and regenerative electronic loads.

Compatible Series: Seamlessly integrate with EA-10000 and EA-10000 Industrial series for comprehensive testing solutions.

Optimized Efficiency

Space-Saving Design: Minimal footprint with rack depth of only 1000 mm in 19″ cabinets.

Turnkey Solutions: Provided as complete EA rack systems for immediate deployment.

High-Power Applications: Specifically engineered for DC high-power testing and simulations.

request a quote

Configure Your EA Rack System

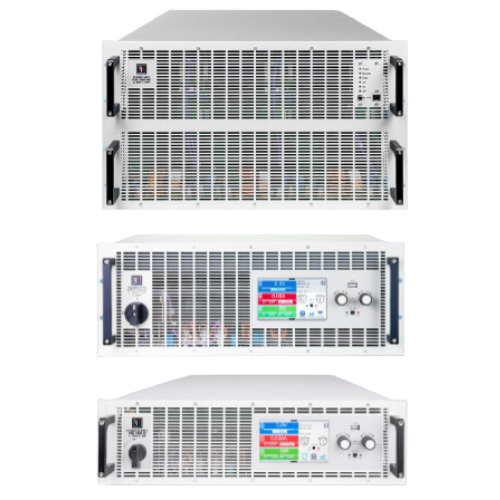

Choose Your Unit

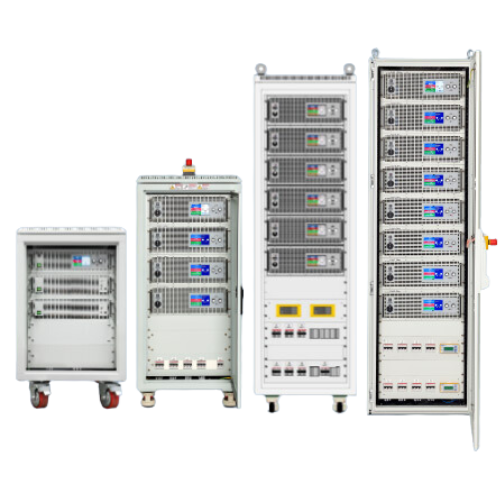

Choose Your Rack

Choose Your Options

Options available for EA rack systems:

- - - Water cooling
    - NS Protection
    - Isolation Monitor
    - DC Contactor
    - DC Copper bar
    - Control Switch
    - Ethernet Switch

Why Partner with W5 Engineering?

Expertise

At W5 Engineering, we specialize in power electronics, providing unmatched knowledge of EA Powered products. Our team of technical sales engineers ensures you find the perfect solution for even the most complex requirements.

Custom Solutions

We deliver customized configurations and integrations tailored to your unique applications. Whether for R&D, production, or testing, W5 Engineering ensures your power systems meet exact specifications.

Rapid Shipping

With on-hand inventory and advanced logistics, we minimize lead times to keep your projects on track. Enjoy seamless delivery and peace of mind with our reliable shipping network.

Customer Support

Our dedicated support and technical teams are with you every step of the way, offering expert assistance from installation to troubleshooting. We’re committed to your success with responsive service and training.

Need a Custom Solution?

Safe, Reliable, and Efficient

Integrated Safety Features

Standardized Compliance: Each EA modular rack system adheres to the EN 60204-1 safety standard and is optimized for 3-phase 400 V mains connectivity.

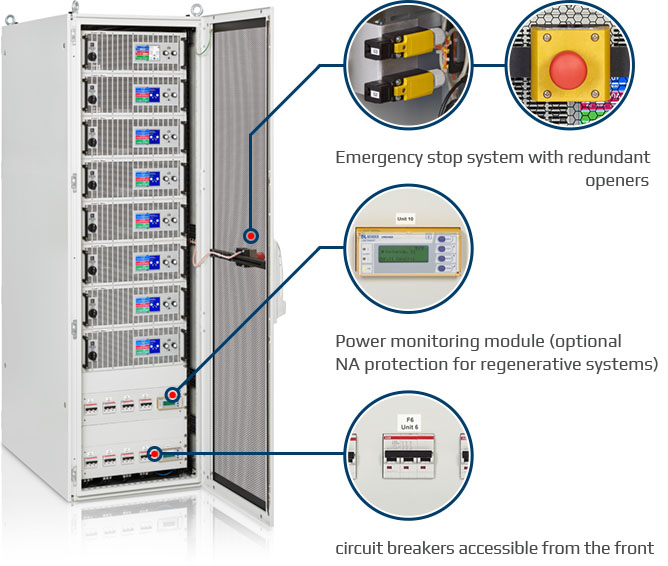

Emergency Stop Mechanism: Equipped with a 2-channel emergency stop system, featuring an emergency stop button and rear door contact switches in the 19″ cabinet.

Central Safety Relay: A dedicated safety relay centrally monitors and controls the entire safety system, capable of deactivating the redundant AC contactor when required.

Fuse-Protected Infrastructure: Comprehensive fuse protection safeguards all devices and cabling within the rack system for enhanced operational safety.

True Autoranging Capabilities

The term “True Autoranging” refers to the ability of EA’s programmable DC power supplies to automatically adjust voltage and current outputs, ensuring full power across a broad operational range.

Regenerative Power Efficiency

Boasting an efficiency of over 96%, EA power supplies are designed to feed absorbed energy back into the electrical grid. This feature not only saves costs but also serves as an eco-friendly solution

EA Rack System Equipment Options for Your Applications

Optimized Cooling Solutions

Water-Cooled Options: EA rack systems offer both standard air-cooled and advanced water-cooled versions. The water-cooled system includes pre-installed water distribution, making it ideal for environments where noise reduction and heat dissipation are critical.

Enhanced Network and Supply Safety Features

NS Protection for Regenerative Systems: EA rack systems equipped with regenerative loads like PUB, PSB, PUL, or ELR feature Network and Supply (NS) protection. This module monitors the grid and acts as an emergency stop, enhancing the safety of regenerative systems.

Advanced Insulation Monitoring

Optional Isolation Monitor: EA rack systems can be optionally fitted with a high-quality insulation monitor that enhances safety by monitoring the DC output’s insulation resistance against protective earth.

Increased Safety with DC Contactors

Integrated DC Contactors: These are strategically placed between the DC output of the EA rack system and the Device Under Test (DUT), acting as an emergency stop to prevent unwanted current flow, thereby increasing operational safety.

Efficient Power Parallelization

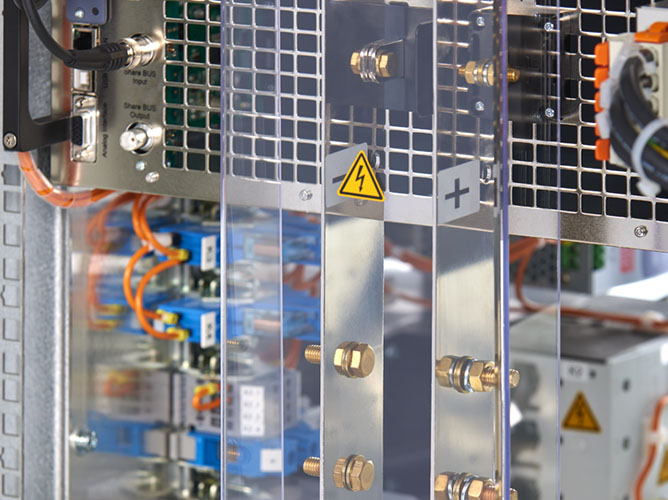

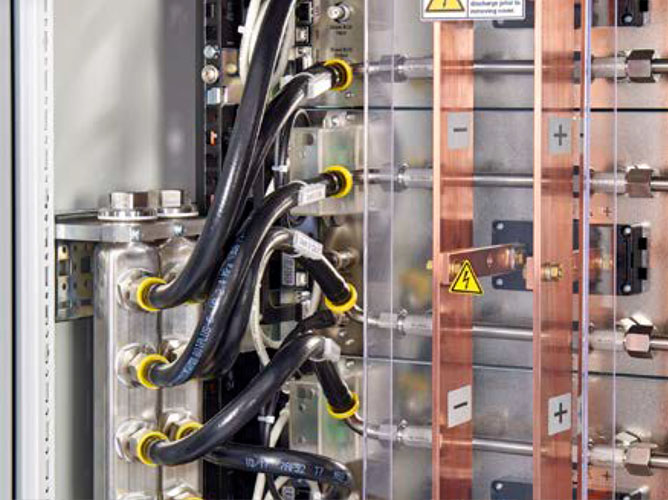

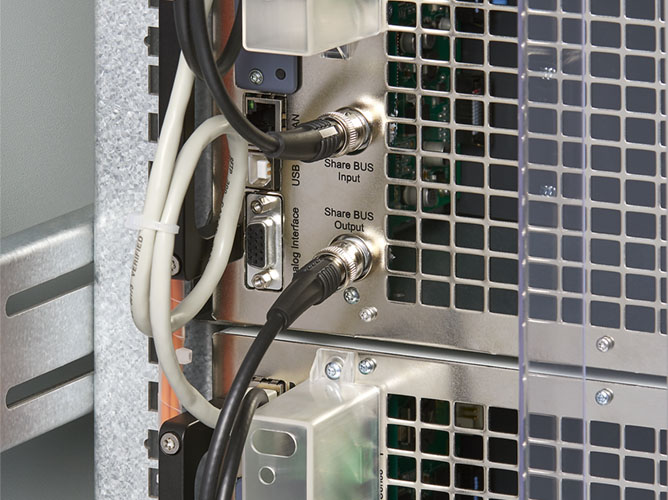

DC Copper Busbars for Enhanced Performance: These are used to parallelize power by connecting multiple DC outputs within an EA rack system, thereby boosting the system’s overall performance.

Simplified Handling with Control Switch

Control Switch for Easy Operation: EA rack systems equipped with a control switch allow for simplified on/off operations. The switch interacts with the system’s redundant AC contactors and can be secured with a padlock for added safety.

Streamlined Connectivity

19″ Ethernet Switch for Reduced Cabling: A high-quality 19-inch Ethernet switch with 24 ports is integrated into the EA rack system, allowing for multi-channel rack operation via a single external Ethernet interface, thus reducing cabling requirements.

Request a Quote

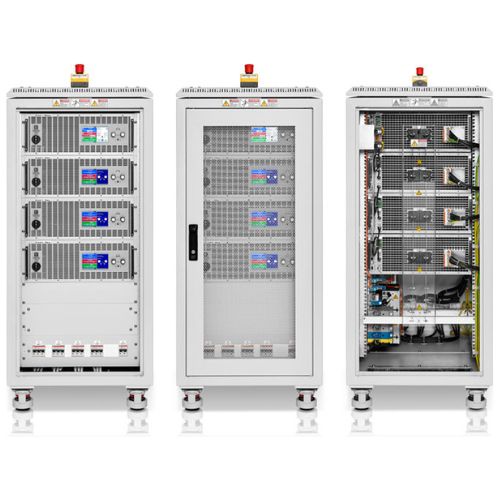

24U Height DC Rack Systems

request a quote

Features

- - For 380 V, 400 V, and 480 V AC
  - With bidirectional power supplies with regenerative power supply (PSB) or power supplies (PSI)
  - Intuitive operation through the multilingual color TFT touch panel
  - Extensive function generator
  - Application for photovoltaics, battery, fuel cell and many more
  - Extensive protective functions (OVP, OCP, OT…)
  - USB, Ethernet, and analog interface as standard
  - Plug & Play slot for digital interfaces
  - All interfaces galvanically isolated
  - Control software: EA Power Control
  - Simulation software: EA Battery Simulator (PSB)
  - LabVIEW VI User Library
  - IVI driver package
  - SCPI and ModBus protocol
  - 19″ cabinet in 15 HE
  - Expandable to up to 4 devices per cabinet

Optional Features

- - Water cooling
  - Emergency stop system without NA protection
  - NA protection (1 with emergency stop system)

Equipment with Series 9000

Power ranges: 15 to 45 kW

Programmable DC laboratory power supplies: PS 9000 / PSE 9000 / PSI 9000

Programmable DC electronic loads: EL 9000B / ELR 9000

Programmable bidirectional DC laboratory power supplies: PSB 9000

Unit Height: 3U

Equipment with Series 10000

Power ranges: up to 120 kW

Programmable DC laboratory power supplies: PSI 10000

Programmable DC electronic loads: ELR 10000

Programmable bidirectional DC laboratory power supplies: PSB 10000

Unit Height: 4U

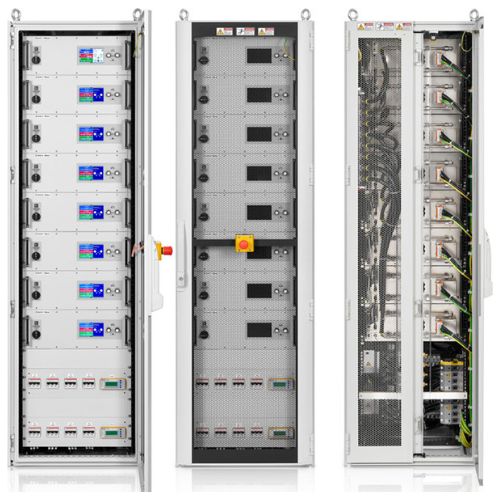

42U Height DC Rack Systems

42U DC Power turn key system rack for EA

request a quote

Features

- - For 380 V, 400 V, and 480 V AC
  - With bidirectional power supplies with regenerative feedback (PSB 10000) or loads with regenerative feedback (ELR 10000) or power supplies (PSI 10000)

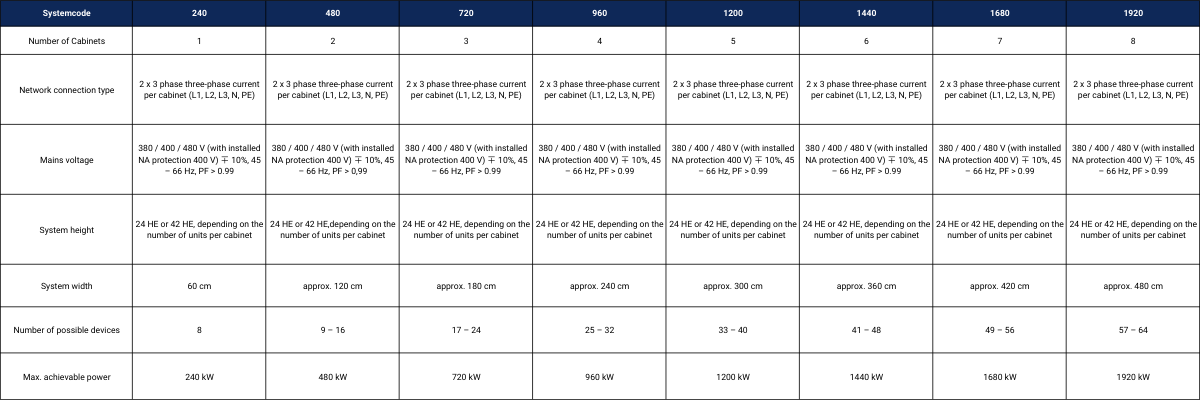

  - Rated power up to 240 kW per cabinet or up to a maximum of 1920 kW as master-auxiliary system

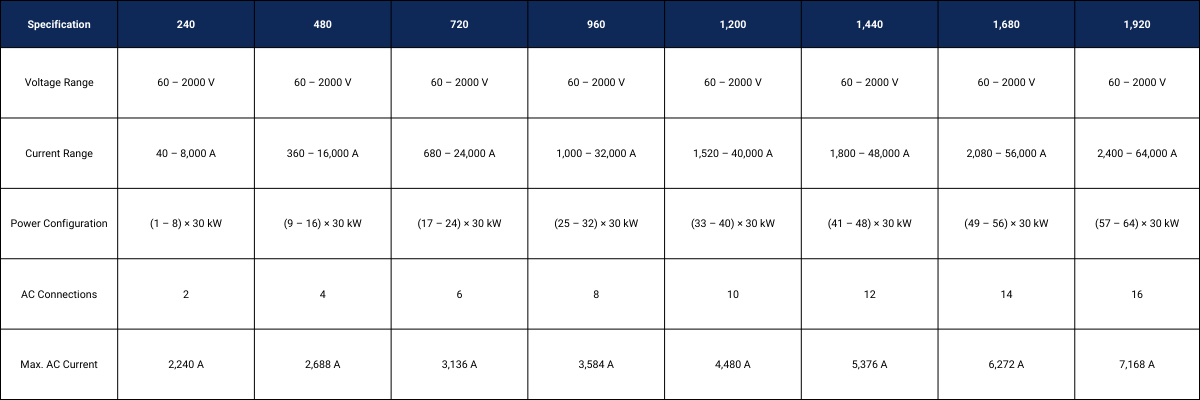

  - Nominal voltages up to 2000 V
  - 60 V configurations for SELV
  - Intuitive operation through the multilingual color TFT touch panel
  - Extensive function generator
  - Application for photovoltaics, battery, fuel cell and many more
  - Extensive protective functions (OVP, OCP, OT…)
  - USB, Ethernet, and analog interface as standard
  - Plug & Play slot for digital interfaces
  - All interfaces galvanically isolated
  - Built according to EN 60204-1 (Machinery Directive)
