High-Performance DC Power Solutions for Precision Applications | 5 kW - 10 kW - 15 kW

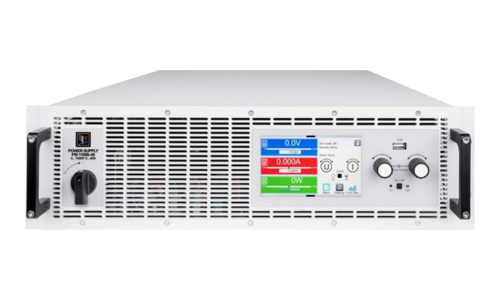

PS 10000 3U
The PS 10000 3U from EA Powered programmable DC power supply delivers high performance and precision for engineers and researchers. With power ratings of up to 15 kW per unit and efficiency reaching 96%, it supports a wide autoranging output, covering voltage ranges from 0-60 V to 0-2000 V and currents up to 510 A. Its scalable design allows parallel operation of up to 64 units. Advanced regulation modes, a 5-inch TFT touchscreen, and comprehensive interfaces make the PS 10000 3U ideal for applications like relay testing, fuel cell simulation, and on-board charger testing.
Key Features
High Performance & Efficiency: Delivers up to 15 kW of power per unit with efficiency rates up to 96%, reducing energy consumption and operational costs.
Wide Autoranging Capability: Supports voltage ranges from 0-60 V to 0-2000 V and current up to 510 A, providing flexibility for diverse applications.
Scalable Parallel Operation: Allows connection of up to 64 units, ideal for large-scale systems.
Advanced Regulation Modes: Includes CV, CC, CP, and CR modes with fast crossover and high-resolution digital control, ensuring precision and adaptability.
User-Friendly Interface: Features a 5-inch color TFT touchscreen with intuitive controls for seamless operation and monitoring.
Why Partner with W5 Engineering?
Expertise
At W5 Engineering, we specialize in power electronics, providing unmatched knowledge of EA Powered products. Our team of technical sales engineers ensures you find the perfect solution for even the most complex requirements.
Custom Solutions
We deliver customized configurations and integrations tailored to your unique applications. Whether for R&D, production, or testing, W5 Engineering ensures your power systems meet exact specifications.
Rapid Shipping
With on-hand inventory and advanced logistics, we minimize lead times to keep your projects on track. Enjoy seamless delivery and peace of mind with our reliable shipping network.
Customer Support
Our dedicated support and technical teams are with you every step of the way, offering expert assistance from installation to troubleshooting. We’re committed to your success with responsive service and training.
Available Models
| Name | Power (W) | Current (A) | Voltage (V) | Ripple in CV (rms) | Ripple in CV (pp) |
|---|---|---|---|---|---|
| PS 12000-20 | 15000 W | 20 A | 2000 V | <400 mV (BW 300 kHz) | <2400 mV (BW 20 MHz) |
| PS 11500-30 | 15000 W | 30 A | 1500 V | <400 mV (BW 300 kHz) | <2400 mV (BW 20 MHz) |
| PS 11000-40 | 15000 W | 40 A | 1000 V | <300 mV (BW 300 kHz) | <1600 mV (BW 20 MHz) |
| PS 11500-20 | 10000 W | 20 A | 1500 V | <400 mV (BW 300 kHz) | <2000 mV (BW 20 MHz) |
| PS 11000-30 | 10000 W | 30 A | 1000 V | <200 mV (BW 300 kHz) | <1000 mV (BW 20 MHz) |
| PS 10750-60 | 15000 W | 60 A | 750 V | <200 mV (BW 300 kHz) | <800 mV (BW 20 MHz) |
| PS 10750-40 | 10000 W | 40 A | 750 V | <200 mV (BW 300 kHz) | <800 mV (BW 20 MHz) |
| PS 10500-90 | 15000 W | 90 A | 500 V | <70 mV (BW 300 kHz) | <350 mV (BW 20 MHz) |
| PS 10750-20 | 5000 W | 20 A | 750 V | <200 mV (BW 300 kHz) | <800 mV (BW 20 MHz) |
| PS 10500-30 | 5000 W | 30 A | 500 V | <70 mV (BW 300 kHz) | <350 mV (BW 20 MHz) |
| PS 10500-60 | 10000 W | 60 A | 500 V | <70 mV (BW 300 kHz) | <350 mV (BW 20 MHz) |
| PS 10360-40 | 5000 W | 40 A | 360 V | <55 mV (BW 300 kHz) | <320 mV (BW 20 MHz) |
| PS 10360-80 | 10000 W | 80 A | 360 V | <55 mV (BW 300 kHz) | <320 mV (BW 20 MHz) |
| PS 10200-70 | 5000 W | 70 A | 200 V | <40 mV (BW 300 kHz) | <300 mV (BW 20 MHz) |
| PS 10360-120 | 15000 W | 120 A | 360 V | <55 mV (BW 300 kHz) | <320 mV (BW 20 MHz) |
| PS 10200-140 | 10000 W | 140 A | 200 V | <40 mV (BW 300 kHz) | <300 mV (BW 20 MHz) |
| PS 10200-210 | 15000 W | 210 A | 200 V | <40 mV (BW 300 kHz) | <300 mV (BW 20 MHz) |
| PS 10080-340 | 10000 W | 340 A | 80 V | <10 mV (BW 300 kHz) | <100 mV (BW 20 MHz) |
| PS 10080-510 | 15000 W | 510 A | 80 V | <10 mV (BW 300 kHz) | <100 mV (BW 20 MHz) |
| PS 10080-170 | 5000 W | 170 A | 80 V | <10 mV (BW 300 kHz) | <100 mV (BW 20 MHz) |
| PS 10060-340 | 10000 W | 340 A | 60 V | <10 mV (BW 300 kHz) | <100 mV (BW 20 MHz) |
| PS 10060-510 | 15000 W | 510 A | 60 V | <10 mV (BW 300 kHz) | <100 mV (BW 20 MHz) |
| PS 10060-170 | 5000 W | 170 A | 60 V | <10 mV (BW 300 kHz) | <100 mV (BW 20 MHz) |
Product Information
PS 10000 3U: High-Performance DC Power Solutions for Precision Applications
The PS 10000 3U programmable DC power supply is designed for engineers and end users who demand precision, efficiency, and scalability. Delivering up to 15 kW per unit with efficiency levels up to 96%, it provides unmatched performance for laboratories, industrial environments, and R&D facilities. Its wide autoranging output supports voltages from 0-60 V to 0-2000 V and currents up to 510 A, ensuring flexibility across a range of applications. Whether for testing, simulation, or system integration, the PS 10000 3U offers the versatility to address diverse engineering challenges.
Engineered for scalability, the PS 10000 3U supports parallel operation of up to 64 units, enabling power systems up to 1920 kW. This makes it an ideal solution for large-scale projects or high-power testing setups. Its advanced regulation modes (CV, CC, CP, CR) and fast crossover ensure accurate and dynamic control. With a 5-inch TFT touchscreen, engineers can enjoy an intuitive and user-friendly experience. Combined with galvanically isolated interfaces like USB, Ethernet, and optional industrial interfaces such as Profinet and CAN, the PS 10000 3U integrates seamlessly into modern automated systems.
Whether it’s for relay testing, fuel cell simulation, or on-board charger testing, the PS 10000 3U stands out for its high performance, reliability, and adaptability. With built-in safety features, including overcurrent, overvoltage, and overtemperature protection, it ensures dependable operation under even the most demanding conditions. This powerful and versatile solution empowers engineers to achieve greater efficiency and innovation in their work.
Specifications
AC Input
-
- Voltage, Phases:
- Range 1: 208 V, ±10%, 3ph AC (with DC output power derating to 3 / 6 / 9 kW)
- Range 2: 380 – 480 V, ±10%, 3ph AC
- Frequency: 45 – 65 Hz
- Power Factor: ca. 0.99
- Leakage Current: <5 mA
- Inrush Current @400 V: ca. 40 A per phase
- Overvoltage Category: 2
- Voltage, Phases:
DC Output (Static)
-
- Load Regulation CV: ≤0.05% FS (0 – 100% load, constant output voltage and constant temperature)
- Line Regulation CV: ≤0.01% FS (208 V – 480 V AC +10% input voltage, constant load and constant temperature)
- Stability CV: ≤0.02% FS (during 8 h of operation, after 30 minutes of warm-up, at constant output voltage, load and temperature)
- Temperature Coefficient CV: ≤30ppm/°C (after 30 minutes of warm-up)
- Compensation (Remote Sense): ≤5% UNominal
- Load Regulation CC: ≤0.1% FS (0 – 100% load, constant output voltage and constant temperature)
- Line Regulation CC: ≤0.01% FS (208 V – 480 V AC +10% input voltage, constant load and constant temperature)
- Stability CC: ≤0.02% FS (during 8 h of operation, after 30 minutes of warm-up, at constant output voltage, load and temperature)
- Temperature Coefficient CC: ≤50ppm/°C (after 30 minutes of warm-up)
- Load Regulation CP: ≤0.3% FS (0 – 100% load, constant output voltage and constant temperature)
- Load Regulation CR: ≤0.3% FS + 0.1% FS current (0 – 100% load, constant output voltage and constant temperature)
Protective Functions
-
- Overvoltage Protection (OVP): Adjustable 0–110% UNominal
- Overcurrent Protection (OCP): Adjustable 0–110% INominal
- Overpower Protection (OPP): Adjustable 0–110% PNominal
- Overtemperature Protection (OT): DC output shuts down in case of insufficient cooling
DC Output (Dynamic)
-
- Rise Time 10 – 90% CV: ≤20 ms
- Fall Time 90 – 10% CV: ≤20 ms
- Rise Time 10 – 90% CC: ≤10 ms
- Fall Time 90 – 10% CC: ≤10 ms
Display Accuracy
-
- Voltage: ≤0.05% FS
- Current: ≤0.1% FS
Insulation
-
- AC Input to DC Output: 3750 Vrms (1 minute, creepage distance >8 mm)
- AC Input to Case (PE): 2500 Vrms
- DC-Output to case (PE): Depending on the model, see model table
- DC Output to Interfaces: 1000 V DC (models up to 360 V rating), 1500 V DC (models from 500 V rating)
Interfaces (Digital)
-
- Built-in, Galvanically Isolated: USB, Ethernet (100 MBit) for communication, 1x USB Host for data acquisition
- Optional, Galvanically Isolated: CAN, CANopen, RS232, Modbus TCP, Profinet, Profibus, EtherCAT, Ethernet
Interfaces (Analog)
-
- Built-in, Galvanically Isolated: 15-pole D-Sub
- Signal Range: 0 – 10 V or 0 – 5 V (switchable)
- Inputs: U, I, P, R, remote control on/off, DC output on/off, resistance mode on/off
- Outputs: Monitor U and I, alarms, reference voltage, DC output status, CV/CC regulation mode
- Accuracy (U/I/P/R): 0-10 V: ≤0.2% , 0-5 V: ≤0.4%
Device Configuration
-
- Parallel Operation: Up to 64 units of any power class in the 10000 series, with Master-Slave Bus and Share Bus
Safety and EMC
-
- Safety Standards: EN 61010-1, IEC 61010-1, UL 61010-1, CSA C22.2 No 61010-1, BS EN 61010-1
- EMC Compliance: EN 55011 (Class B), CISPR 11 (Class B), FCC 47 CFR part 15B (Class B)
- EN 61326-1 Includes tests: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
- Safety Protection Class: Class 1
- Ingress Protection: IP20
Environmental Conditions
-
- Operating Temperature: 0–50 °C (32–122 °F)
- Storage Temperature: -20–70 °C (-4–158 °F)
- Humidity: ≤80% relative humidity, non-condensing
- Altitude: ≤2000 m (≤6,600 ft)
- Pollution Degree: 2
Mechanical Construction
-
- Cooling: Forced air flow from front to rear (temperature-controlled fans)
- Dimensions (W x H x D): 19” x 3U x 668 mm
- Weight: 5 kW unit: 18 kg (40 lb), 10 kW unit: 25.4 kg (56 lb), 15 kW unit: 32.8 kg (72 lb)
Need More Channels?
Need more channels or 1 MS communication speed? Check out the EA BT 2000 Series with triple channel capability.
Interfaces and Software
Built-In Interfaces
Optional Interfaces
-
- USB
- Ethernet
- Analog
- USB Host
- Master-Slave-Bus
- Share-Bus
-
- CAN
- CANopen
- RS232
- Profibus
- EtherCAT
- Profinet, with one or two ports
- Modbus, with one or two ports
- Ethernet, with one or two ports
Software
-
- EA-Power Control
