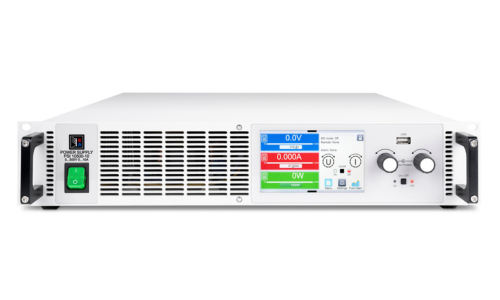

PS 10000 2U

The PS 10000 2U programmable DC power supply is a compact, high-performance solution designed for engineers and researchers. Offering power ratings of 1.5 kW and 3.0 kW with efficiency exceeding 95%, this device supports a wide autoranging output for voltages ranging from 0-60 V to 0-1500 V and currents up to 120 A. Its advanced features, including a 5-inch TFT touchscreen, integrated function generator, and versatile interface options, make it ideal for diverse applications, from laboratory testing to industrial use. With built-in scalability for parallel operation of up to 64 units, the PS 10000 2U delivers the precision and adaptability engineers need to excel.

Key Features

Wide Autoranging Output: Provides voltages from 0-60 V to 0-1500 V and currents up to 120 A, offering full power over a broad range of operating conditions.

High Efficiency: Achieves efficiency levels exceeding 95%, minimizing energy loss and heat generation.

Scalable Design: Supports parallel operation of up to 64 units.

Advanced Interfaces: Includes built-in USB, Ethernet, and analog interfaces, with optional industrial interfaces like Profinet and CANopen for seamless integration.

Intuitive Control: Features a 5-inch color TFT touchscreen for easy operation and monitoring, plus adjustable control speeds for precise performance.

Why Partner with W5 Engineering?

Expertise

At W5 Engineering, we specialize in power electronics, providing unmatched knowledge of EA Powered products. Our team of technical sales engineers ensures you find the perfect solution for even the most complex requirements.

Custom Solutions

We deliver customized configurations and integrations tailored to your unique applications. Whether for R&D, production, or testing, W5 Engineering ensures your power systems meet exact specifications.

Rapid Shipping

With on-hand inventory and advanced logistics, we minimize lead times to keep your projects on track. Enjoy seamless delivery and peace of mind with our reliable shipping network.

Customer Support

Our dedicated support and technical teams are with you every step of the way, offering expert assistance from installation to troubleshooting. We’re committed to your success with responsive service and training.

Available Models

Product Information

Flexible, Scalable, and Precision Engineered for Every Application

The PS 10000 2U is a compact programmable DC power supply designed for engineers and researchers seeking efficiency, flexibility, and precision. Delivering up to 3.0 kW of power with efficiency exceeding 95%, this device supports a wide autoranging output for voltages from 0-60 V to 0-1500 V and currents up to 120 A. Its compact 2U rack design saves valuable space while providing the versatility needed for a broad range of applications, from laboratory testing to industrial systems.

Built for scalability, the PS 10000 2U can operate in parallel with up to 64 units. This makes it an ideal choice for high-power applications, where modular design and flexibility are critical. The device also features advanced interfaces, including USB, Ethernet, and analog connections, alongside optional industrial interfaces like Profinet, CAN, and EtherCAT. These ensure seamless integration into automated systems and modern testing environments.

With its 5-inch TFT touchscreen, the PS 10000 2U offers an intuitive user experience, enabling precise control of voltage, current, power, and resistance. Additional features, such as an integrated function generator, adjustable regulation speeds, and robust safety protections (OVP, OCP, OTP), make it a reliable and adaptable solution for engineers tackling complex challenges. Whether for relay testing, battery simulation, or on-board charger evaluations, the PS 10000 2U delivers the power and precision required to innovate with confidence.

Specifications

 AC Input

    • Voltage, Phases: 110 V / 120 V / 208 V / 220 V / 230 V / 240 V ±10%, 1ph AC (110 V / 120 V 1ph with Derating, see model table)
    • Frequency: 45-66 Hz
    • Power factor: >0.99
    • Leakage current: <3.5 mA
    • Overvoltage category: 2
    • Pollution degree: 2

DC Output (Static)

    • Load Regulation CV: ≤0.05% FS (0 – 100% load, constant input voltage and constant temperature)
    • Line Regulation CV: ≤0.01% FS (110 V – 240 V AC +10% input voltage, constant load and constant temperature)
    • Stability CV: ≤0.02% FS (Over 8hrs interval following 30 minutes warm-up, constant input voltage, load and temperature)
    • Temperature Coefficient CV: ≤30ppm/°C (Following 30 minutes warm up)
    • Compensation (Remote Sense): ≤5% UNominal
    • Load Regulation CC: ≤0.1% FS (0 – 100% load, constant input voltage and constant temperature)
    • Line Regulation CC: ≤0.01% FS (110 V – 240 V AC +10% input voltage, constant load and constant temperature)
    • Stability CC: ≤0.02% FS (Over 8hrs interval following 30 minutes warm-up, constant input voltage, load and temperature)
    • Temperature Coefficient CC: ≤50ppm/°C (Following 30 minutes warm up)
    • Load Regulation CP: ≤0.3% FS (0 – 100% load, constant input voltage and constant temperature)
    • Load Regulation CR: ≤0.3% FS + 0.1% FS current (0 – 100% load, constant input voltage and constant temperature)

Protective Functions

    • Overvoltage Protection (OVP): Adjustable 0–110% UNominal
    • Overcurrent Protection (OCP): Adjustable 0–110% INominal
    • Overpower Protection (OPP): Adjustable 0–110% PNominal
    • Overtemperature Protection (OT):  Output shuts down in case of insufficient cooling

DC Output (Dynamic)

    • Rise Time 10 – 90% CV: ≤20 ms
    • Fall Time 90 – 10% CV: ≤20 ms
    • Rise Time 10 – 90% CC: ≤10 ms
    • Fall Time 90 – 10% CC: ≤10 ms

Display Accuracy

    • Voltage: ≤0.05% FS
    • Current: ≤0.1% FS

    Insulation

      • AC Input to DC Output: 3750 Vrms (1 minute, creepage distance >8 mm)
      • AC Input to Case (PE): 2500 Vrms
      • DC-Output to case (PE): Depending on the model, see model table
      • DC Output to Interfaces: 1000 V DC (models up to 360 V output), 1500 V DC (models from 500 V output)

      Interfaces (Digital)

        • Built-in, Galvanically Isolated: USB, Ethernet (100 MBit) for communication, 1x USB Host for data acquisition
        • Optional, Galvanically Isolated: CAN, CANopen, RS232, Modbus TCP, Profinet, Profibus, EtherCAT, Ethernet

      Interfaces (Analog)

        • Built-in, Galvanically Isolated: 15-pole D-Sub
        • Signal Range: 0 – 10 V or 0 – 5 V (switchable)
        • Inputs: U, I, P, remote control on/off, DC output on/off
        • Outputs: Monitor U and I, alarms, reference voltage, status DC, status CV/CC
        • Accuracy (U/I/P): 0-10 V: ≤0.2% , 0-5 V: ≤0.4%

      Device Configuration

        • Parallel Operation: Up to 64 units of any power class in the 10000 series, with Master-Slave Bus and Share Bus

      Safety and EMC

        • Safety Standards: EN 61010-1, IEC 61010-1, UL 61010-1, CSA C22.2 No 61010-1, BS EN 61010-1
        • EMC Compliance: EN 55011 (Class B), CISPR 11 (Class B), FCC 47 CFR part 15B (Class B)
        • EN 61326-1 Includes tests: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
        • Safety Protection Class: Class 1
        • Ingress Protection: IP20

      Environmental Conditions

        • Operating Temperature: 0–50 °C (32–122 °F)
        • Storage Temperature: -20–70 °C (-4–158 °F)
        • Humidity: ≤80% relative humidity, non-condensing
        • Altitude: ≤2000 m (≤6,600 ft)
        • Pollution Degree: 2

      Mechanical Construction

        • Cooling: Forced air flow from front to rear (temperature-controlled fans)
        • Dimensions (W x H x D): 19” x 2U x 477 mm (Enclosure only, not over all)
        • Weight: 1.5 kW unit: 10.5 kg (23.1 lbs), 3.0 kW unit: 11.7 kg (25.8 lbs)

      Need More Channels?

      Need more channels or 1 MS communication speed? Check out the EA BT 2000 Series with triple channel capability.

      Interfaces and Software

      Built-In Interfaces

      Optional Interfaces

        • USB
        • Ethernet
        • Analog
        • USB Host
        • Master-Slave-Bus
        • Share-Bus
        • CAN
        • CANopen
        • RS232
        • Profibus
        • EtherCAT
        • Profinet, with one or two ports
        • Modbus, with one or two ports
        • Ethernet, with one or two ports

      Software

        • EA-Power Control
