Programmable DC Power Supply | 320 W - 1500 W

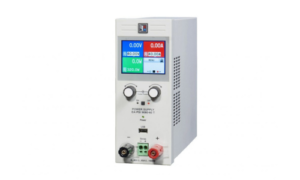

PSI 9000 T

The EA PSI 9000 T Series represents a sophisticated range of programmable DC power supplies designed for advanced testing and development applications. These devices offer precision, flexibility, and user-friendly operation, making them ideal for use in laboratories, research facilities, and industrial settings. With a compact form factor and powerful performance capabilities, the PSI 9000 T Series ensures reliable and accurate results, even in demanding environments. The series includes advanced features such as a high-resolution touch display, integrated function generator, and a comprehensive range of communication interfaces, ensuring seamless integration into modern testing setups.

Key Features

Wide Power Range: Covers power ratings from 320 W to 1,500 W, with output voltages up to 500 V.

Integrated Function Generator: Generates various waveforms (sine, square, ramp) for versatile test scenarios.

Comprehensive Communication Options: Includes USB, Ethernet, and optional analog interfaces for seamless integration.

User-Friendly Touch Display: High-resolution interface for monitoring and controlling parameters with ease.

Advanced Safety Features: OVP, OCP, and OTP ensure reliable operation and equipment protection.

Why Partner with W5 Engineering?

Expertise

At W5 Engineering, we specialize in power electronics, providing unmatched knowledge of EA Powered products. Our team of technical sales engineers ensures you find the perfect solution for even the most complex requirements.

Custom Solutions

We deliver customized configurations and integrations tailored to your unique applications. Whether for R&D, production, or testing, W5 Engineering ensures your power systems meet exact specifications.

Rapid Shipping

With on-hand inventory and advanced logistics, we minimize lead times to keep your projects on track. Enjoy seamless delivery and peace of mind with our reliable shipping network.

Customer Support

Our dedicated support and technical teams are with you every step of the way, offering expert assistance from installation to troubleshooting. We’re committed to your success with responsive service and training.

Available Models

Product Information

Experience Advanced Functionality with EA PSI 9000 T Power Supplies

The EA PSI 9000 T Series is engineered to meet the needs of professionals seeking high-performance power supplies with advanced programmability. With output power ratings ranging from 320 W to 1,500 W and adjustable voltage up to 500 V, these devices deliver precise and stable power for a variety of applications. The integrated high-resolution touch display simplifies operation, enabling users to monitor and adjust parameters effortlessly. This makes the series particularly well-suited for laboratories, production facilities, and automated test environments.

Designed for versatility, the PSI 9000 T Series features an integrated function generator capable of generating various waveforms such as sine, square, and ramp, supporting a wide range of test scenarios. The devices also support advanced communication options, including USB, Ethernet, and optional analog interfaces, ensuring seamless integration into existing setups. The intuitive software interface further enhances productivity, allowing users to control and program the power supplies remotely. These features ensure that the series remains adaptable to the evolving needs of engineers and researchers.

Safety and reliability are at the forefront of the PSI 9000 T Series design. The power supplies include comprehensive protection features such as overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP). A temperature-controlled fan ensures optimal thermal management, while the compact enclosure enhances portability and ease of use. With its robust construction and advanced features, the PSI 9000 T Series is a reliable choice for professionals demanding precision and versatility in their power supply solutions.

Specifications

AC Supply
• Voltage: 90…264 V, 1ph+N
• Frequency: 45…65 Hz
• Power factor: >0.99
• Derating: Only models with 1500 W: <150 V AC to P rated 1000 W

DC Voltage
• Accuracy: <0.1% of rated value
• Load regulation ±100% ΔI UC: <0.05% of rated value
• Line regulation ±10% ΔU AC: <0.02% of rated value
• Regulation 10–100% load: <2 ms
• Rise time 10–90%: Max. 30 ms
• Overvoltage: Adjustable, 0…110% U nom

DC Current
• Accuracy: <0.2% of rated value
• Load regulation ±100% ΔI UC: <0.15% of rated value
• Line regulation ±10% ΔU AC: <0.05% of rated value

DC Power
• Accuracy: <1% of rated value

Overvoltage category: 2
Protection: OT, OVP, OCP, OPP, PF

Insulation
• Input to enclosure: 2500 V DC
• Input to output: 2500 V DC
• Output to enclosure: Negative: max. 400 V DC, positive: max. 400 V DC + output voltage
• Degree of pollution: 2
• Protection class: 1

Analog interface (optional)
• 15 pole D-Sub, galvanically isolated
o Signal range: 0…5 V or 0…10 V (switchable)
o Inputs: U, I, P, remote control on-off, DC output on-off, resistance mode on-off
o Outputs: U, I, overvoltage, alarms, reference voltage
o Accuracy U / I / P: 0…10 V: <0.2%, 0…5 V: <0.4%

Parallel operation: Possible

Standards: EN 60950, EN 61326, EN 61010, EN 55022 Class B
Cooling: Temperature-controlled fan
Operation temperature: 0…50 °C
Storage temperature: -20…70 °C
Relative humidity: <80%, non-condensing
Altitude: <2000 m (1,242 mi)

Mechanics
Weight: 320 W–640 W: ≈7 kg (15.4 lb), 1000 W–1500 W: ≈8 kg (17.6 lb)
Dimensions (W x H x D): 320 W–640 W: 92 x 239 x 352 mm (3.6″ x 9.4″ x 13.8″), 1000 W–1500 W: 92 x 239 x 412 mm (3.6″ x 9.4″ x 16.2″)

Interfaces and Software

Built-In Interfaces

Software

    • USB

Optional Interfaces

    • Analog
    • Ethernet
    • EA Power Control
