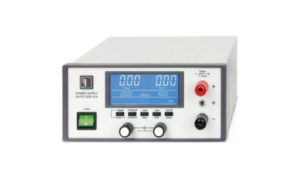

Programmable Desktop DC Power Supply | 160 W - 640 W

PS 5000 A

The EA-PS 5000 A Series offers a range of programmable DC laboratory power supplies designed to meet the diverse needs of research and development environments. With power outputs ranging from 160 W to 640 W, these units feature autoranging capabilities, allowing for flexible adjustment of voltage and current within their specified limits. Equipped with modern interfaces such as USB and optional Ethernet, along with support for SCPI and ModBus RTU command sets, the EA-PS 5000 A Series ensures seamless integration into various testing and development setups.

Key Features

Wide Power Range: Supports output power from 160 W to 640 W for various applications.

Auto-Ranging Power Stage: Flexible voltage and current combinations for diverse testing needs.

Integrated Protections: Includes OVP, OCP, and OPP to safeguard devices and equipment.

High Efficiency: Operates at up to 92% efficiency, reducing energy consumption and heat.

User-Friendly Design: Features a blue LCD display and intuitive controls for effortless operation.

Available Models

Product Information

Experience Unmatched Flexibility with EA-PS 5000 A Power Supplies

The EA-PS 5000 A Series is engineered to meet the demanding requirements of modern laboratories and industrial settings. With power outputs ranging from 160 W to 640 W, these power supplies offer autoranging capabilities, enabling flexible adjustment of voltage and current to accommodate various testing scenarios. This flexibility ensures that a single unit can cover a wide range of applications, reducing the need for multiple devices and optimizing workspace efficiency.

A key feature of the EA-PS 5000 A Series is its advanced communication interfaces. Standard USB and optional Ethernet ports facilitate easy integration into existing systems, allowing for remote control and monitoring. The support for SCPI and ModBus RTU command sets ensures compatibility with various software platforms, enabling automated testing procedures and data acquisition. Additionally, the units are equipped with an intuitive user interface, featuring a clear display and straightforward controls, enhancing user experience and operational efficiency.

Safety and reliability are paramount in the design of the EA-PS 5000 A Series. The power supplies incorporate comprehensive protection mechanisms, including overvoltage, overcurrent, and overpower protections, safeguarding both the device and the equipment under test. The robust build quality and adherence to international safety standards make these units a dependable choice for professionals seeking high-performance power solutions.

Specifications

Wide input voltage range: 90…264 V with active PFC
High efficiency: Up to 92%
Output power ratings: 0…160 W up to 0…640 W
Output voltages: 0…40 V up to 0…200 V
Output currents: 0…2 A up to 0…40 A
Flexible, power-regulated output stage
Supervision: OVP, OCP, OPP
Blue LCD display: For all values and status

Memory: Stores 9 different presets
Temperature-controlled fans for cooling
Chassis: Top and bottom closed
40 V models: According to SELV (EN 60950)
EMC compliance: According to EN 55022 Class B
LabView VIs
Control software: For Windows

Interfaces and Software

Built-In Interfaces

Software

    • USB
    • Analog
    • Ethernet
    • EA Power Control
