Programmable Desktop DC Power Supply | 100 W - 160 W

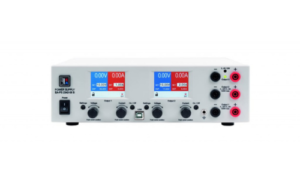

PS 2000 B TFT Triple

The EA-PS 2000 B Triple Series comprises microprocessor-controlled, programmable laboratory power supplies designed to meet the demands of educational institutions, industrial applications, workshops, and development laboratories. Featuring two main flexible outputs with power ratings of 100 W or 160 W, and an auxiliary output of 3–6 V at 12 W, these units offer versatility and precision. The series supports series, parallel, and tracking modes, enhancing adaptability for various testing scenarios. Equipped with USB interfaces and comprehensive protection mechanisms, the EA-PS 2000 B Triple Series ensures reliable performance and seamless integration into diverse environments.

Key Features

Flexible Dual Main Outputs: Each providing 100 W or 160 W with adjustable voltage and current ranges, accommodating diverse application needs.

Integrated Tracking Function: Enables simultaneous adjustment of both main outputs for synchronized testing requirements.

Comprehensive Protection Mechanisms: Includes OVP, OCP, and OTP to safeguard both the power supply and connected devices.

USB Programmability: Allows for seamless integration into automated testing environments and remote control capabilities.

Series and Parallel Operation Modes: Facilitates higher output voltages or currents by configuring outputs accordingly, enhancing versatility.

Why Partner with W5 Engineering?

Expertise

At W5 Engineering, we specialize in power electronics, providing unmatched knowledge of EA Powered products. Our team of technical sales engineers ensures you find the perfect solution for even the most complex requirements.

Custom Solutions

We deliver customized configurations and integrations tailored to your unique applications. Whether for R&D, production, or testing, W5 Engineering ensures your power systems meet exact specifications.

Rapid Shipping

With on-hand inventory and advanced logistics, we minimize lead times to keep your projects on track. Enjoy seamless delivery and peace of mind with our reliable shipping network.

Customer Support

Our dedicated support and technical teams are with you every step of the way, offering expert assistance from installation to troubleshooting. We’re committed to your success with responsive service and training.

Available Models

Product Information

Experience Unmatched Versatility with EA-PS 2000 B Triple Power Supplies

The EA-PS 2000 B Triple Series is engineered to provide precise and reliable power solutions for a wide range of applications. The two main outputs feature flexible voltage and current ranges, allowing seamless adjustment to accommodate varying requirements. This flexibility enables users to operate the power supplies in high-voltage or high-current modes, effectively broadening the scope of potential applications. Additionally, the auxiliary output offers a stable 3–6 V supply, suitable for powering peripheral devices or low-voltage circuits.

A notable feature of the EA-PS 2000 B Triple Series is the integrated tracking function, which facilitates simultaneous adjustment of the two main outputs. This capability is particularly advantageous when testing symmetrical power circuits or applications requiring synchronized voltage levels. The series and parallel operation modes further enhance versatility, allowing users to achieve higher output voltages or currents by appropriately configuring the outputs. Such adaptability makes these power supplies indispensable tools in both educational settings and professional laboratories.

Safety and user convenience are paramount in the design of the EA-PS 2000 B Triple Series. The units are equipped with comprehensive protection features, including overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP), ensuring the safety of both the device and connected equipment. The microprocessor-controlled interface, complemented by a clear display, allows for intuitive operation and precise adjustments. Furthermore, the USB programmability facilitates easy integration into automated testing setups, enhancing efficiency and productivity in various applications.

Specifications

Input

  • Voltage / Frequency: 90…264 V
  • Frequency: 45-66 Hz
  • Power Factor: = 0.99

Output Voltage

Stability at 0-100% Load: <0.15%

Stability at ±10% ΔUAC: <0.02%

Regulation 10-100% Load

  • <1 ms

OVP Adjustment

  • 0…92.4 V

Accuracy

  • <0.2%

    Output Current

    • Stability at 0-100% ΔIUC: <0.15%
    • Stability at ±10% ΔUAC: <0.05%

    Efficiency

    • 85%

    Output Power

    • PS 2042-06 B: 100 W
    • PS 2084-03 B: 100 W
    • PS 2042-10 B: 160 W
    • PS 2084-05 B: 160 W
    • PS 2042-20 B: 320 W
    • PS 2084-10 B: 320 W

    Cooling

    • PS 2042-06 B & PS 2084-03 B: Natural convection
    • PS 2042-10 B, PS 2084-05 B, PS 2042-20 B & PS 2084-10 B: Fan

    Interfaces and Software

    Built-In Interfaces

    Software

      • USB

    Optional Interfaces

      • Analog
      • Ethernet
      • EA Power Control
