EL 9000 DT

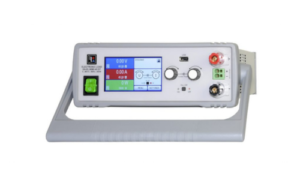

The EA EL 9000 DT Series is a compact and powerful range of programmable DC electronic loads designed to meet the demands of modern laboratories, research facilities, and industrial environments. Offering high performance in a desktop form factor, this series features advanced operation modes, a highly efficient cooling system, and versatile communication options. With its comprehensive safety features and intuitive interface, the EL 9000 DT Series is an ideal choice for testing and simulating various load conditions, ensuring reliability and efficiency for engineers and technicians.

Key Features

Compact Design: Desktop form factor with power ratings up to 1,200 W and currents up to 60 A.

Integrated Function Generator: Create complex waveforms for dynamic testing scenarios.

Battery Simulation and MPP Tracking: Ideal for photovoltaic and energy storage testing.

Comprehensive Safety Features: Includes OVP, OCP, and OTP for enhanced equipment protection.

Versatile Communication Options: Built-in USB with optional Ethernet and analog interfaces for seamless connectivity.

Why Partner with W5 Engineering?

Expertise

At W5 Engineering, we specialize in power electronics, providing unmatched knowledge of EA Powered products. Our team of technical sales engineers ensures you find the perfect solution for even the most complex requirements.

Custom Solutions

We deliver customized configurations and integrations tailored to your unique applications. Whether for R&D, production, or testing, W5 Engineering ensures your power systems meet exact specifications.

Rapid Shipping

With on-hand inventory and advanced logistics, we minimize lead times to keep your projects on track. Enjoy seamless delivery and peace of mind with our reliable shipping network.

Customer Support

Our dedicated support and technical teams are with you every step of the way, offering expert assistance from installation to troubleshooting. We’re committed to your success with responsive service and training.

Available Models

Product Information

Maximize Efficiency and Precision with the EA EL 9000 DT

The EA EL 9000 DT Series sets a new standard for compact electronic loads with its robust performance and versatile features. Designed for space-saving desktop operation, this series delivers power ratings ranging from 400 W to 1,200 W, with a wide input voltage range of 0…750 V and currents up to 60 A. Its highly efficient thermal management system ensures optimal performance, even during extended usage under demanding conditions. Engineers can rely on its intuitive control panel with a TFT touchscreen for seamless operation and precise parameter adjustments.

A standout feature of the EL 9000 DT Series is its integrated function generator, which enables users to create complex waveforms such as sine, triangle, and square. Additionally, the series supports advanced MPP tracking and battery simulation, making it ideal for photovoltaic and energy storage testing. These functionalities, combined with its ability to simulate real-world conditions, provide engineers with the tools necessary for thorough and accurate testing of components and systems.

Safety and connectivity are at the heart of the EL 9000 DT Series. The devices include protection features such as OVP (overvoltage protection), OCP (overcurrent protection), and OTP (overtemperature protection), ensuring the safety of both the equipment and users. The series also offers versatile communication options, including built-in USB and optional Ethernet and analog interfaces, for seamless integration into automated test environments. Whether in a laboratory or an industrial setup, the EL 9000 DT Series is the go-to solution for reliable and efficient DC load testing.

Specifications

AC Supply
Voltage: 90…264 V
Frequency: 45…66 Hz
Power consumption: max. 40 W

DC Voltage
Accuracy: <0.1% of rated value

DC Current
Accuracy: <0.2% of rated value
Load regulation ±100% ΔIUC: <0.1% of rated value
Rise time 10–90%: <50 µs

DC Power
Accuracy: <0.5% of rated value

DC-Resistance
Accuracy: ≤1% of max. resistance + 0.3% of rated current

Display / Control Panel
Graphics display with TFT touch panel

Digital Interfaces
1x USB type B (for communication) / 1x USB type A (for storage device) / 1x Ethernet

Analog interface
Built-in, 15 pole D-Sub (female), galvanically isolated
Signal range: 0…5 V or 0…10 V (switchable)
Inputs: U, I, P, R, remote control on-off, DC input on-off, resistance mode on-off
Outputs: U, I, overvoltage, alarms, reference voltage
Accuracy U / I / P / R: 0…10 V: <0.2%, 0…5 V: <0.4%

Cooling
Temperature controlled fan(s)

Operation temperature: 0…50 °C
Storage temperature: -20…70 °C

Mechanics
Dimensions (W x H x D): 308 x 103 x 415 mm (12.1″ x 4″ x 16.3″)
Weight: 600 W: ≈ 6.5 kg (14.3 lb)
1200 W: ≈ 7.5 kg (16.5 lb)

Interfaces and Software

Built-In Interfaces

Software

    • USB

Optional Interfaces

    • Analog
    • Ethernet
    • EA Power Control
