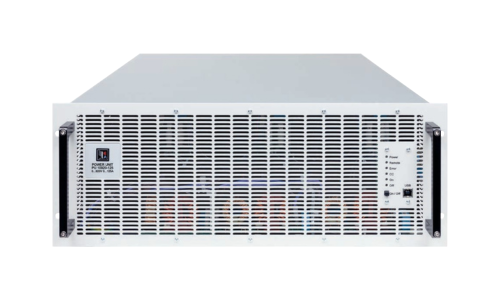

PU 10500-180
These units provide up to 60 kW in a compact 6U form factor, featuring autoranging capabilities for flexible voltage and current combinations. With efficiencies exceeding 96% and the ability to parallel up to 64 units for systems delivering up to 3.84 MW, the Industrial Series ensures scalable and efficient solutions for high-power testing and simulation needs.
Key Features
| Power (W) | 30000 W |
|---|---|
| Voltage (V) | 500 V |
| Current (A) | 180 A |
| Input Voltage | +/- 10%, 208 V – 480 V, 3ph AC |
| Communication | CAN, CANopen, EtherCAT, Ethernet, GPIB, Modbus TCP, Profibus, ProfiNet, RS232 |
| Bidirectional | No |
| Arb Function Generator | Yes |
| Ripple in CV (rms) | ≤70 mV (BW 300 kHz) |
| Ripple in CV (pp) | ≤350 mV (BW 20 MHz) |
| Efficiency | 96.50% |
| Umin for Imax | N/A |
| Resistance Range | 0.08 Ω – 170 Ω |
| Output Capacity | 675 μF |
