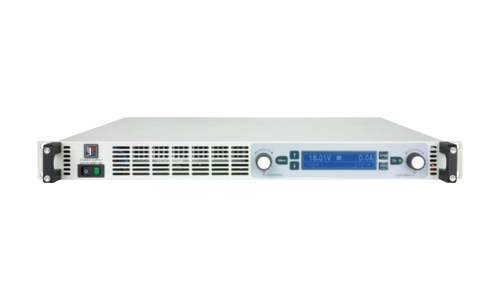

PS 9750-06 1U
he EA PS/PSI Series offers programmable DC power supplies ranging from 1,000 W to 30 kW in a single chassis, featuring true autoranging capabilities and an integrated function generator. These units provide flexible voltage and current combinations, making them ideal for diverse applications in research, development, and testing environments
Key Features
| Power (W) | 1500 W |
|---|---|
| Voltage (V) | 750 V |
| Current (A) | 6 A |
| Input Voltage | 100 V – 240 V |
| Communication | Ethernet |
| Bidirectional | No |
| Arb Function Generator | No |
| Ripple in CV (rms) | 40 mV (BW 300 kHz) |
| Ripple in CV (pp) | 260 mV (BW 20 MHz) |
| Efficiency | 95.0% |
| Umin for Imax | N/A |
