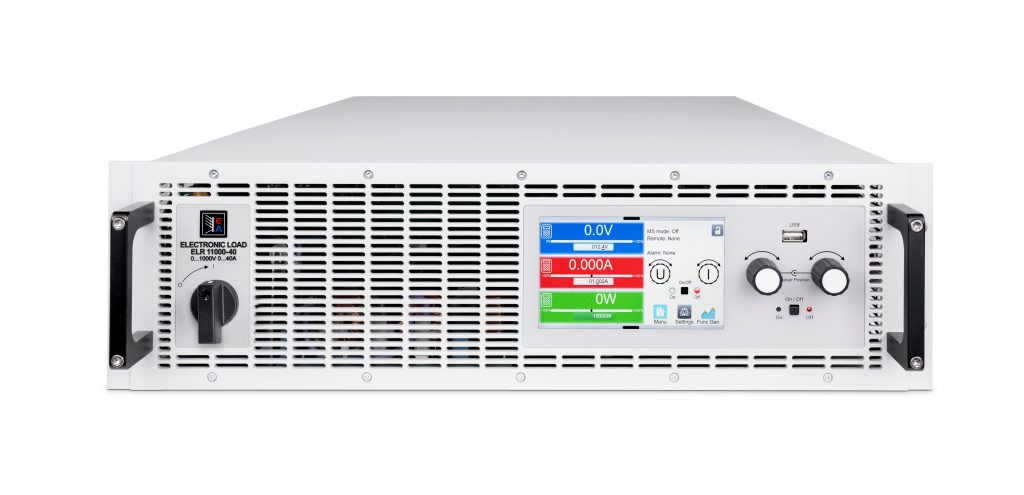

ELR 11000-30

The Elektro Automatik EL and ELR series offer high-performance electronic loads engineered to meet the demands of modern testing for power supplies, batteries, and renewable energy systems. With features like precise control, integrated measurement capabilities, and versatile operating modes, they ensure reliable and accurate results for a wide range of applications. Designed with user-friendly interfaces and robust build quality, these products provide engineers and researchers with a powerful solution for testing and simulating power sources.

Key Features

Power (W)

10000

Voltage (V)

1000

Current (A)

30

Input Voltage

208 V – 480 V

Communication

CAN, CANopen, EtherCAT, Ethernet, Modbus TCP, Profibus, ProfiNet, RS232

Bidirectional

Yes

Arb Function Generator

Yes

Ripple in CV (rms)

≤200 mV (BW 300 kHz)

Ripple in CV (pp)

≤1000 mV (BW 20 MHz)

Efficiency

95.50%

Umin for Imax

<4.0 V

Resistance Range

1.2 Ω – 2000 Ω

Output Capacity

90 μF
