ADI40 – Power Analysis + Multi-Sensor Data Acquisition System

ADI40 – Analog to Digital Interface Expansion

ADI40 - Power Analyzer Analogue I/O Interface, Analogue Inputs, Outputs, and Thermocouple inputs

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

Product Details

Multi-Channel Analog Sensor Expansion System with multiple Analog Outputs enables precision power measurements with the external, time-correlated analog sensor measurements

analog sensor measurements.

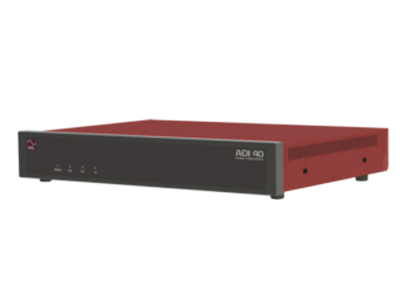

The ADI40 extends the versatility of the Precision Power Analyzers (PPA3500, PPA4500 , and PPA5500), collecting a multitude of DC measurements and streaming the data digitally to the Power Analyzer. Featuring 4x, 8x, 12x or 16x direct thermocouple inputs (type J or type k), 4x, 8x, 12x or 16x analog DC inputs and 20x analog DC outputs. Analog outputs can be mapped to any PPA measured parameter, as well as the analog/thermocouple inputs.

Typical applications include system integration where multiple power/sensor parameters must be analyzed within one central measurement system, bringing together external sensors and primary power measurements from the PPA3500, PPA4500/PPA5500. This data is available via the command line (through the intuitive "MUTILOG” command, see PPA comms manual for more details) or sent out as a DC voltage level to one of the 20x outputs on the ADI40 to chart recorders or similar devices.

Features & Benefits

ADI40 Analogue<>Digital Interface Product Overview
0.1% FS Basic accuracy	4~16 Analogue DC Inputs +/-10V
20 Analogue Outputs +/-10V	4~16 Thermocouple Inputs (Type J or Type K)
Up to 10ms update rate	Measured Parameters within PPA are able to be mapped to the Analogue Outputs
High-speed sampling on all channels	Connects to Power Analyzer via Extension Port
Compatible with many Pressure, Torque, Flow Rate Sensors	Ideal for Systems Integrators
Temperature Range	Type J: +200 to -180, Type k: +200 to -200
